Elliptical Wheels with rotation center on one of the two focus (Unilobe)
Teeth number must be odd and > 11.
The Eccentricity value recommended between 0 to 0.43 to avoid concave-convex primitive
profiles.
Transmission ratio Tau ecommended between 0.333 to 1.

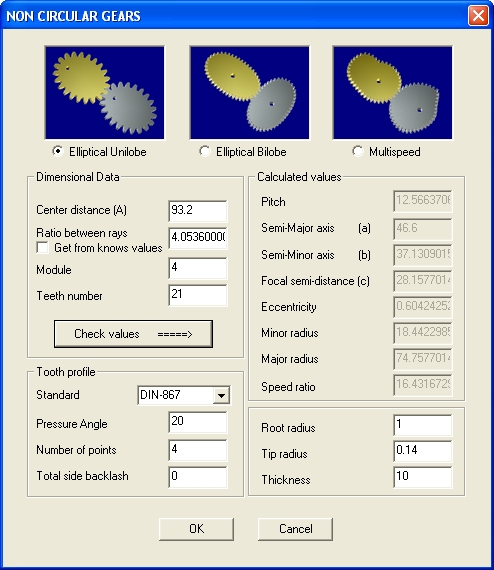

Press Check values button after insertion of Dimensional Data to verify Ratio and Module values.
Activate Get from knows values check-control to obtain Ratio and Module values by entering
Minor radius and Major radius.

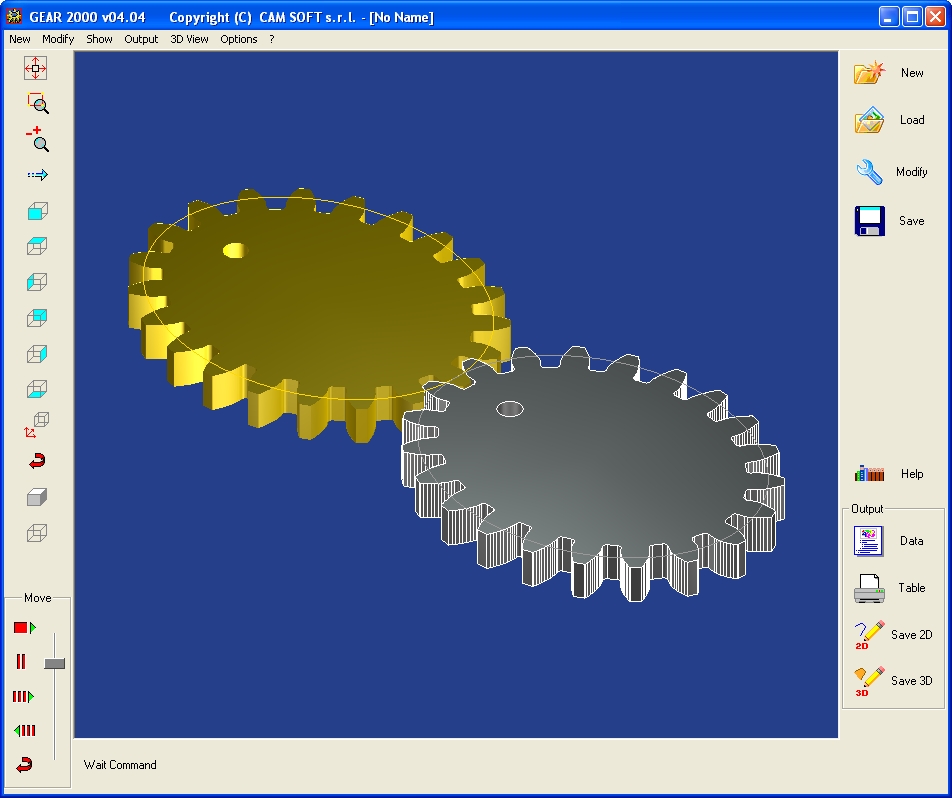

Clicking OK button the program generates the profiles: 3D models are displayed and many
commands for output and export are now available.

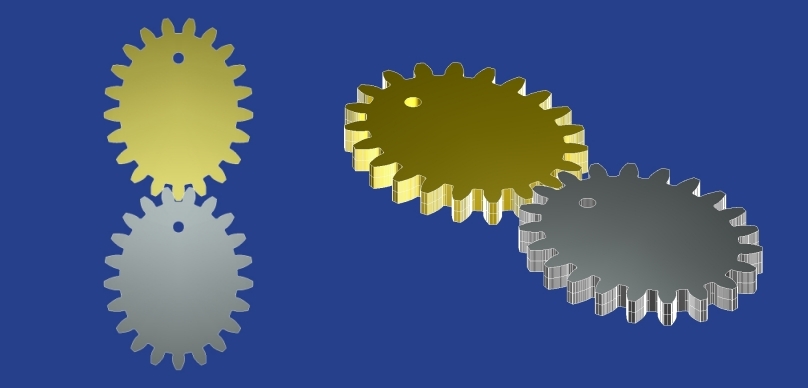

-Solid models with primitive elliptical profiles -
