Pressure Angle

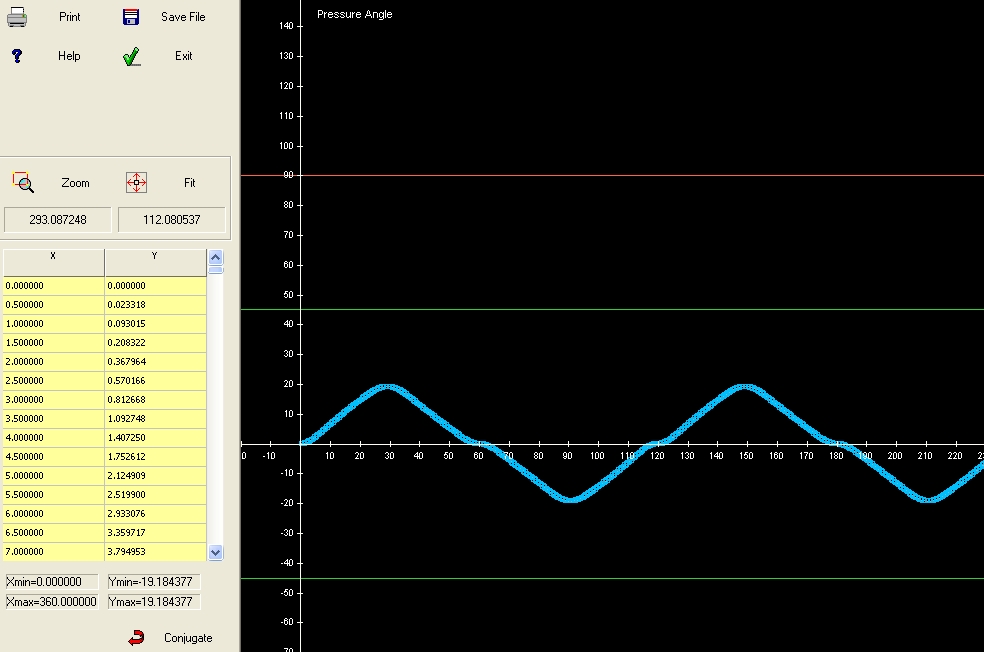

This function display the Graphics of the Pressure Angle of the calculated Cam Profiles
(referred to the center of the roller).
The displayed data refers to the Base Cam, if there is a Conjugated Cam it is possible to see its
data by clicking the Conjugate button
Use Base Cam button to return to the previous view.
It is also possible to manually modify each single value of X and Y by double-clicking in the table
box containing the coordinates of the points (yellow), or by double-clicking in the graph
corresponding to the point to be modified; the cursor will automatically position itself in the table
on the corresponding line.
The green line (Pressure Angle at 45 degrees) represents the maximum recommended limit,
while the red line (Pressure Angle at 90 degrees) indicates the limit at which the Follower
detaches from the Cam.
