Welcome to CMM2000

*CAM SOFT s.r.l.* *CMM2000* - User Manual
Chronology of publications: New Tutorial Video
First edition March 2005 Second edition June 2006 Third edition May 2007 Fourth edition January 2010 Fifth edition June 2012 Sixth edition June 2015 Seventh edition March 2017 Eighth edition December 2019 Ninth edition January 2022 Tenth edition March 2025

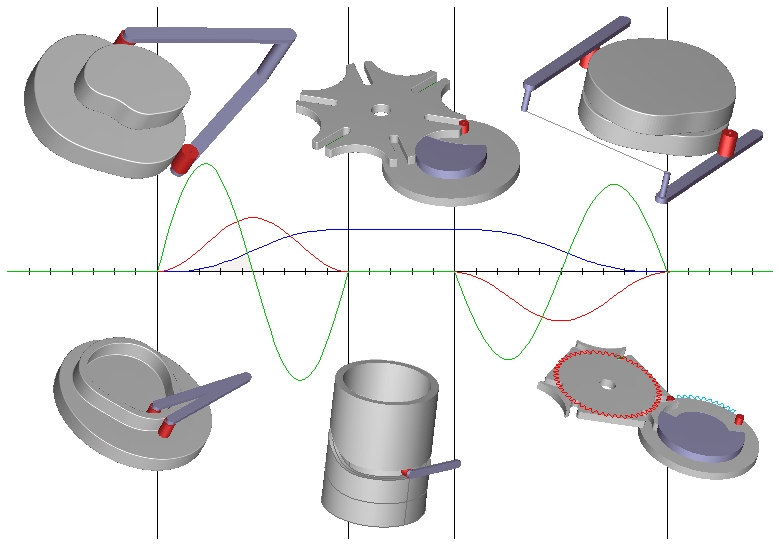

CMM2000 is an application oriented to the analysis of Radial/Translating Cams, Cylindrical/Globoidal Cams or GENEVA Wheels, STAR Wheels and INTERMITTENT Drum Mechanisms.

The analysis can follows two way :

· When it is known the follower Motion Type the Cam profile, correlated with displacement, velocity and acceleration are immediately calculated.

· When it is known the Cam profile (FILE of POINTS) are verified the Follower kinematics as displacement, velocity and acceleration.

Capabilities:

1. Use of different followers (Knife-edge, roller, flat-faced with/without offset follower).

2. Evaluation of conjugate Cams (follower configuration: rocker-arm, yoke radial cam flat-faced, and so).

3. Graphics simulation of follower displacement.

4. Pressure angle and cam radius curvature evaluation with diagrams plotting.

5. Output in MI, DXF ,IGES ,STEP and other 3D format useful for cad.

6. Mecad interfacing ( software application for flat kinematic motion design ).

7. Data report with images and table in HTML format

8. excel format data export.

Benefits:

1. Capability of use of various followers motion and its interactive management.

2. Independent definition of the follower motion using a normal function y=f(x).

3. Data acquisition from a points file (cartesian or polar) defining a Cam profile.

4. interactive data management.

5. Plotting and printing of complete Cam data.

6. Output of Cam profile ready to use on CN machine.

CMM2000 is interfaced with other CAM SOFT s.r.l. applications oriented to the working on CN machine like:

· EDM2000 EDM wire profile cutting for dies.

· PGL2000 2.5 axes milling and turning.

Foreword

CAM SOFT s.r.l. does not provide any warranty in respect of the present material.

This manual is sold as is,without warranty of any kind, either express or implicit, respecting the contents of this manual, including but not limited to implied warranties for the manual’s quality, performance, merchantability, or fitness for any particular purpose.

CAM SOFT s.r.l. shall not be liable to the purchase or any other person or entity with respect to any liability, loss or damage caused or alleged to be caused directly or indirectly by this manual.

CAM SOFT s.r.l. declines every responsability derived from errors contained in this manual, or for damages (accidental or not) derived from the supply, interpretation an use of this manual.

CMM2000 Help
