Symple Harmonic
This Curve has a cosine acceleration curve.
The projection of a generic radius point P , starting at point “0” moves vertically at point Q along
the diameter D of the reference circle with simple harmonic motion while the circle rotate at
constant ω.

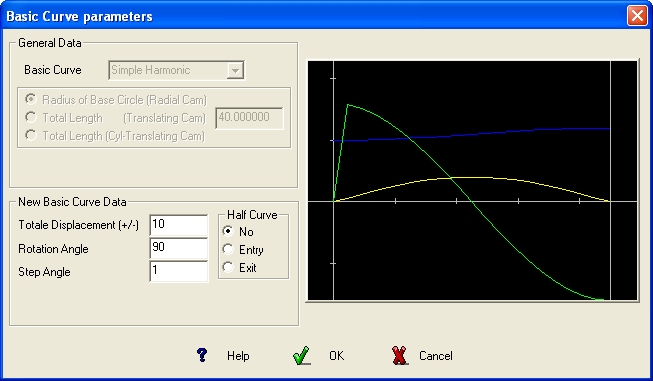

It is possible to define “Half” Basic Curve.
The division point correspond to the inflexion point of the graphic displacement.
Select the Option :
· No for complete Curve
· Entry for entry half-curve
· Exit for exiting half-curve
