New GearCLICKing the button and selecting 'SPUR GEAR / HELICAL GEAR' option, the WIZARD input
dialog appears .

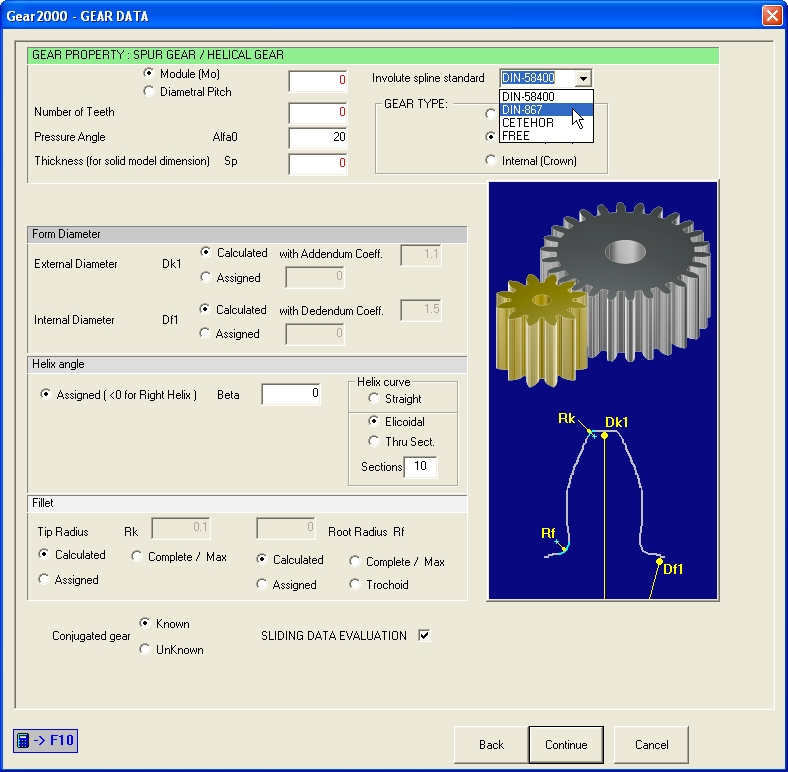

-WIZARD for New Gear DIN-58400, DIN-867, CETEHOR e FREE -
WIZARD remains active until the input is completed and you can advance a page with the
Continue key or go back to the previous one with the Back key.
If you do not use the Cancel button that ends the data entry, you get to the last page and then the
Tooth Profile is created with the End button.
If the 'Known' radio of 'Conjugated gear' options is selected, the WIZARD dialog shows also the
pages for conjugate wheel input data.
Activates the SLIDING DATA EVALUATION check to display a diagram showing the values of
the specific sliding data resulting from the data imposed and those optimized by the program
through the calculated data.
The Y axis corresponds to the Primitive Diameter and divides the diagram into two parts: to the
left, what happens under the diameter ( Dedendum ), to the right what happens above the
diameter (Addendum).

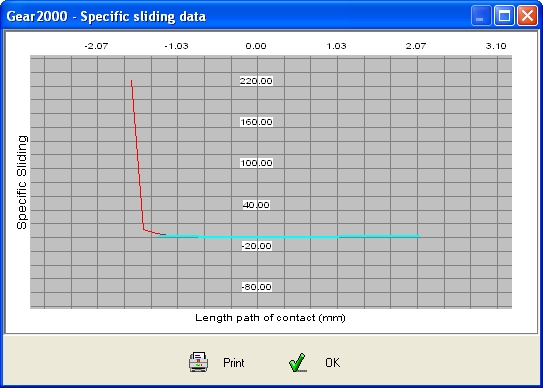

In the example below, the red line indicates the high sliding of the generated wheel (assigned
data, no profile shift); the blue line indicate the sliding (lower and balanced) generated with profile
shift coefficients calculated by GEAR2000.

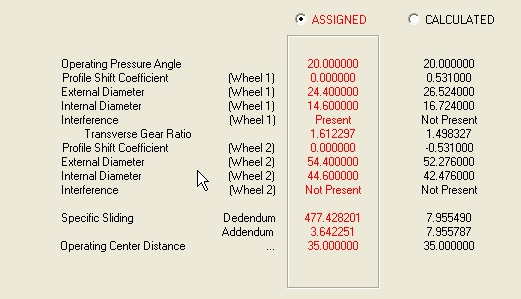

-Specific sliding analysis and balancing -
- Choice: Assigned data or Calculated by the program -
During contact the tangency point moves differently on the two profiles and this results in a sliding
that is null only at the point of tangency of the primitive diameters. Sliding has a profound effect
on profile wear.
The optimum placement condition is that excessive absolute values are not reached and that the
values between the drive wheel and the driven wheel are not too different between them. The use
of profile corrections allows to vary the sliding.

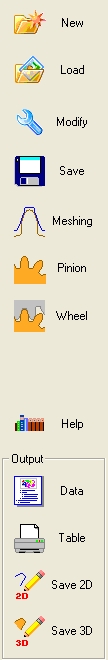

At the end of data input, on the right side of the main window, new commands are enabled :
-New commands available -
Save allow to save the inserted data on file system.
