Modify allows to change
or confirm the previously entered data and is equivalent
to the Load command when using the Only Data option. For the change to take effect, you must go to the last page and confirm with the End button.

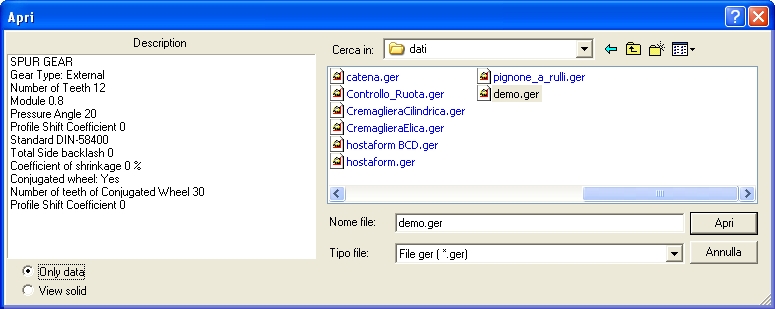

-Load - Only data -

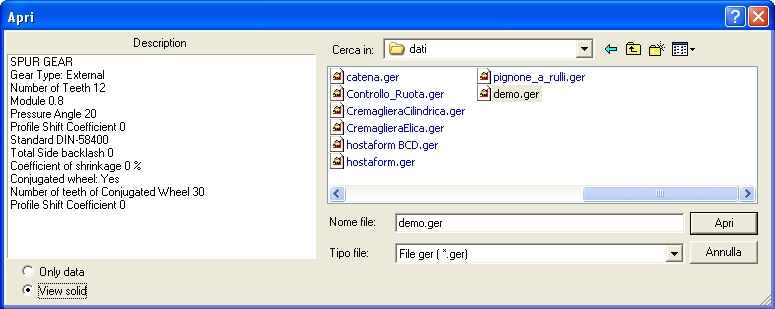

-Load - View solid -
If you use the View solid option, the program will load the gear by creating the solid model in the
mode defined with Preview, Simple Solid or Solid options
The difference between these 3 choices depends on whether you need to save a solid gear
model to export it to a solid modeling program (Save 3D feature) or not; if you just need to look
for a work already done and you do not need the solid defined, the Preview choice is good. If you
have a powerful Personal Computer or you must export to a solid modeling program, the good
choice is Solid.

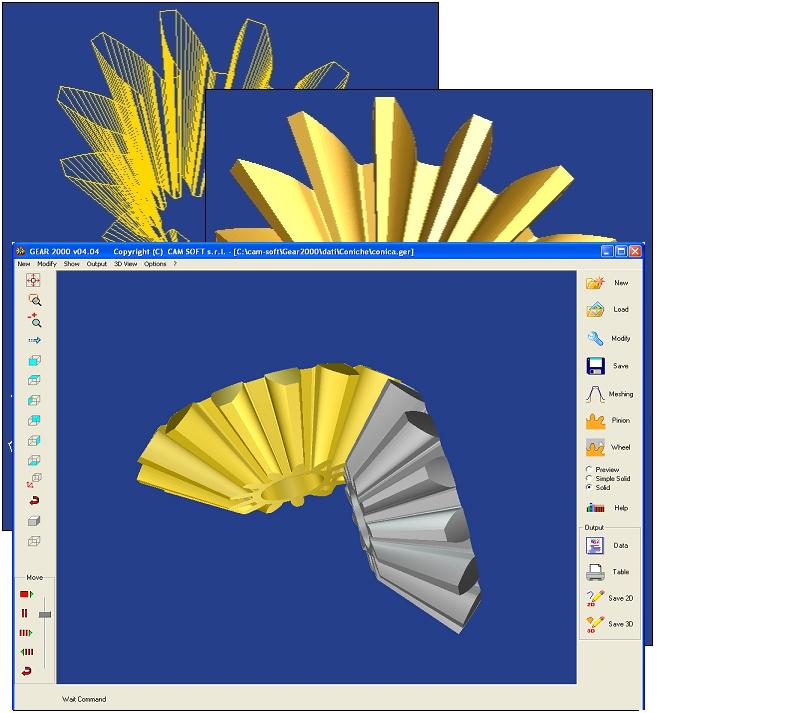

- Preview, Simple Solid or Solid views -
