Shafts connections UNI 8953 ( Parallel Flanks )
This standard is also valid for old UNI 221 / UNI 222 standards and ISO 14 / DIN 14 / DIN 5461 standards.

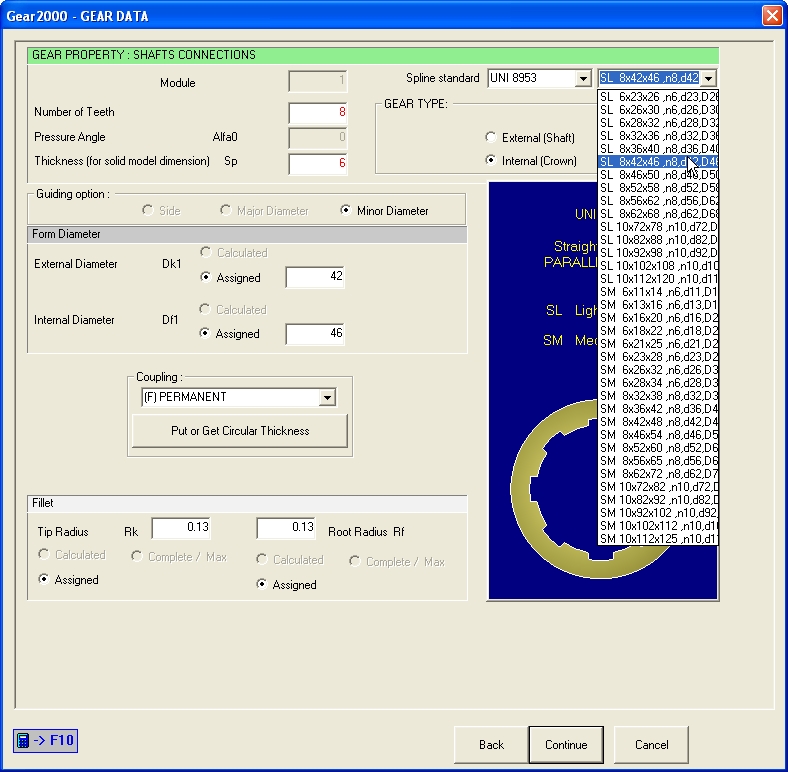

Choosing profile name from COMBO list, every standard values are updated on active DIALOG.
Main data:
N = Number of Teeth
d = External Diameter
D = Internal Diameter
B = Tooth Thickness
Selecting coupling option, tolerance values for shaft and crown are shows in a specific table.
Clicking Put or Get Circular Thickness button a new input DIALOG allows to modify the tooth
thickness value.
Clicking Continue the program generates the profile and Solid button appears on the right of
window.

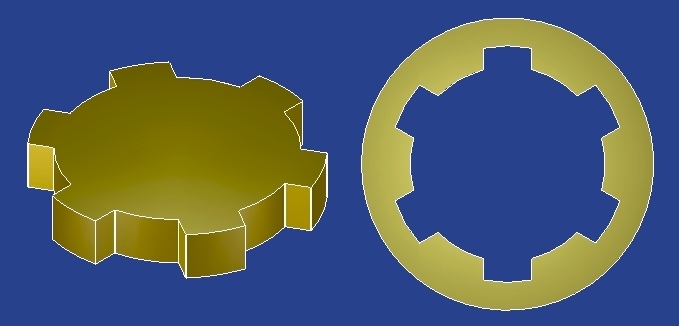

Press the Solid button and complete input: 3D model is displayed and many commands for
output and export are now available.

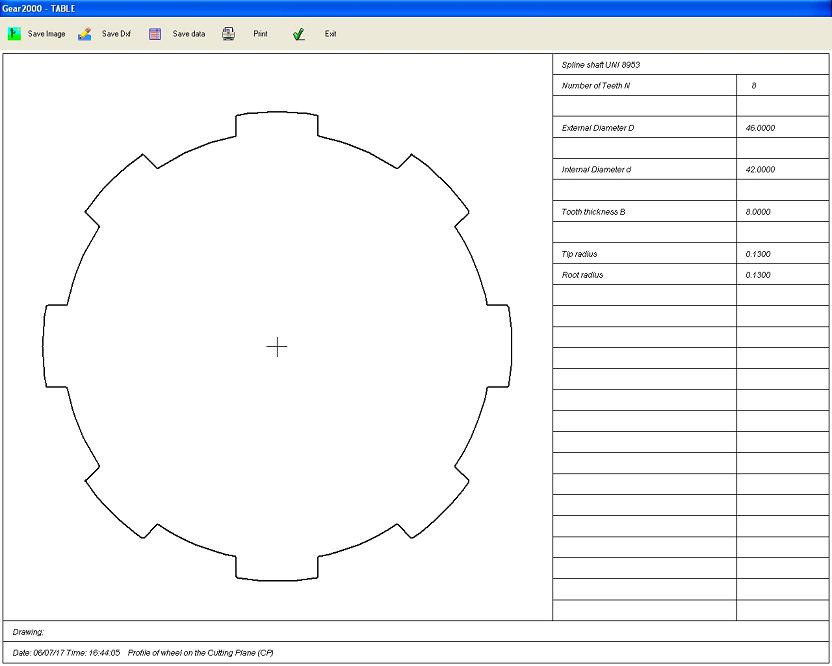

- Example of Table output -
