Shafts connections DIN 5462 e DIN 5463 ( Parallel Flanks )
The standard is also valid for TS 147/15 and TS 147/16 standards.

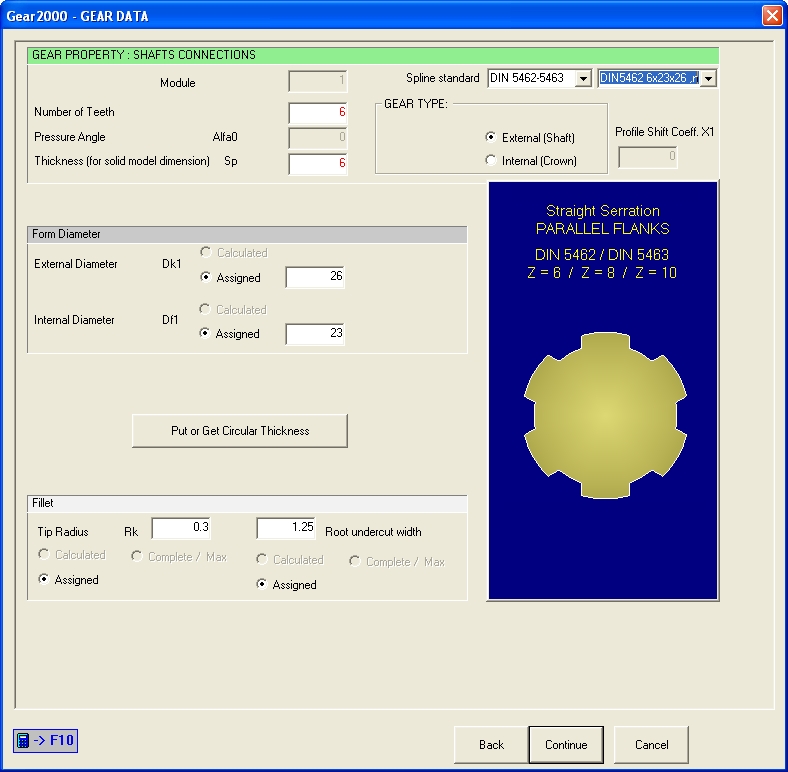

Choosing profile name from COMBO list, every standard values are updated on active DIALOG.
Main data:
N = Number of Teeth
d = External Diameter
D = Internal Diameter
B = Tooth Thickness
Clicking Put or Get Circular Thickness button a new input DIALOG allows to modify the tooth
thickness value
In the shaft, a Root undercut width value is suggested by the standard but can be modified by
the operator.
