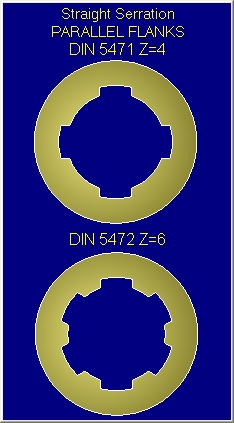

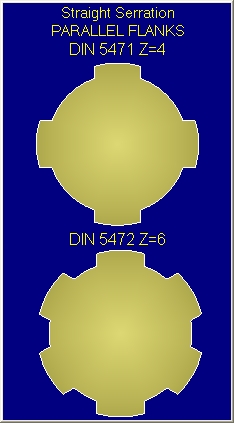

Shafts connections DIN 5471 e DIN 5472 ( Parallel Flanks )

graphic graphic

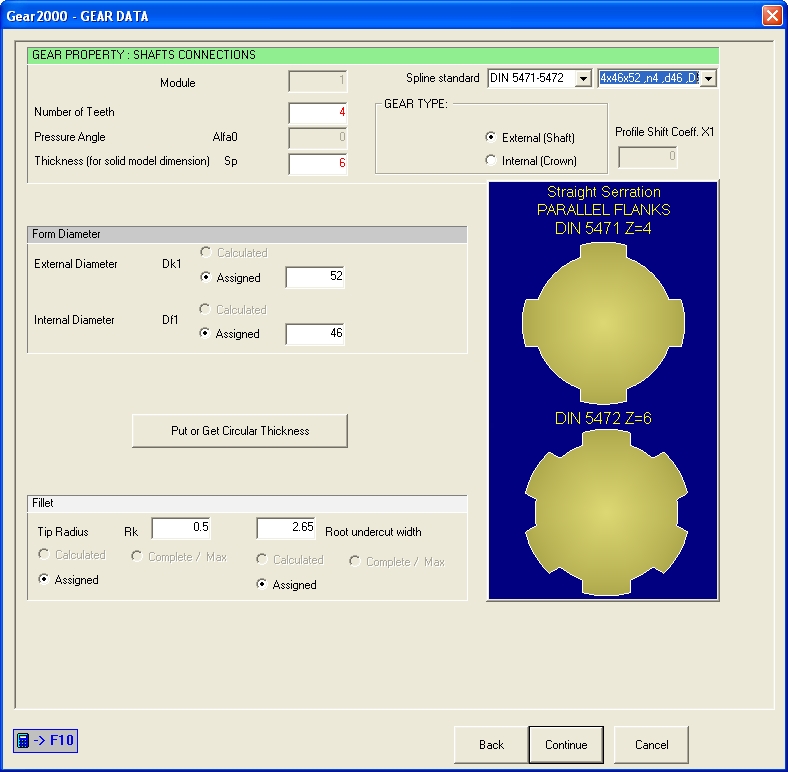

Choosing profile name from COMBO list, every standard values are updated on active DIALOG.

Main data:
N = 4 (Number of Teeth for DIN5471) or N = 6 (Number of Teeth for DIN5472)
d = External Diameter
D = Internal Diameter
B = Tooth Thickness


graphic

Clicking Put or Get Circular Thickness button a new input DIALOG allows to modify the tooth
thickness value.

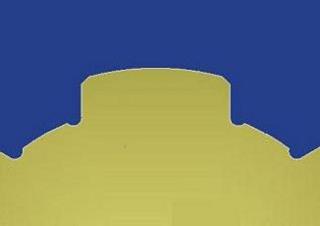

In the shaft, a Root undercut width value is suggested by the standard but can be modified by the operator.

graphic graphic
