Shafts connections SAE A/B/C series ( Parallel Flanks )

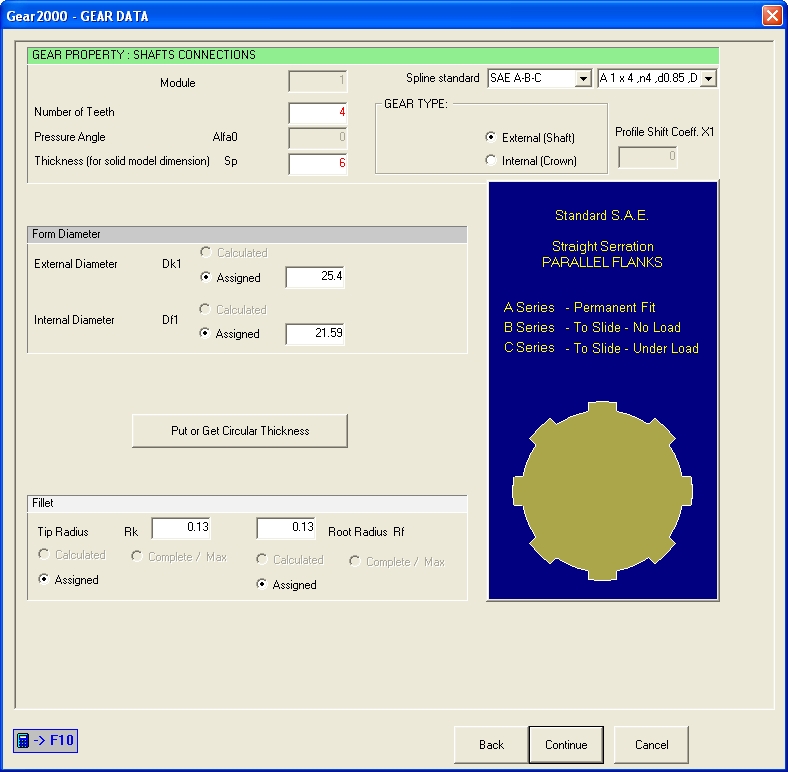

Choosing profile name from COMBO list, every standard values are updated on active DIALOG.
Main data:
N = Number of Teeth
d = External Diameter
D = Internal Diameter
B = Tooth Thickness
Coupling options:
A Series = Permanent Fit
B Series = To Slide - No Load
C Series = To Slide - Under Load
Clicking Put or Get Circular Thickness button a new input DIALOG allows to modify the tooth
thickness value.
Clicking Continue the program generates the profile and Solid button appears on the right of
window.

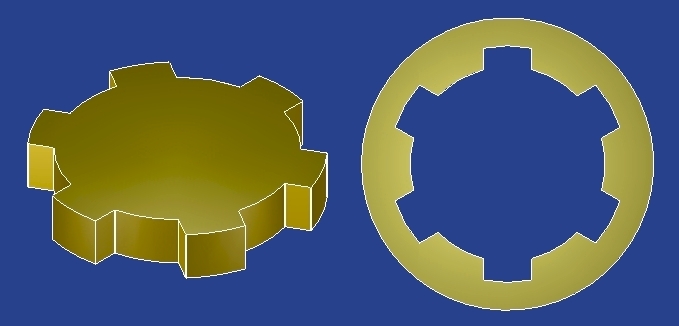

Press the Solid button and complete input: 3D model is displayed and many commands for
output and export are now available.

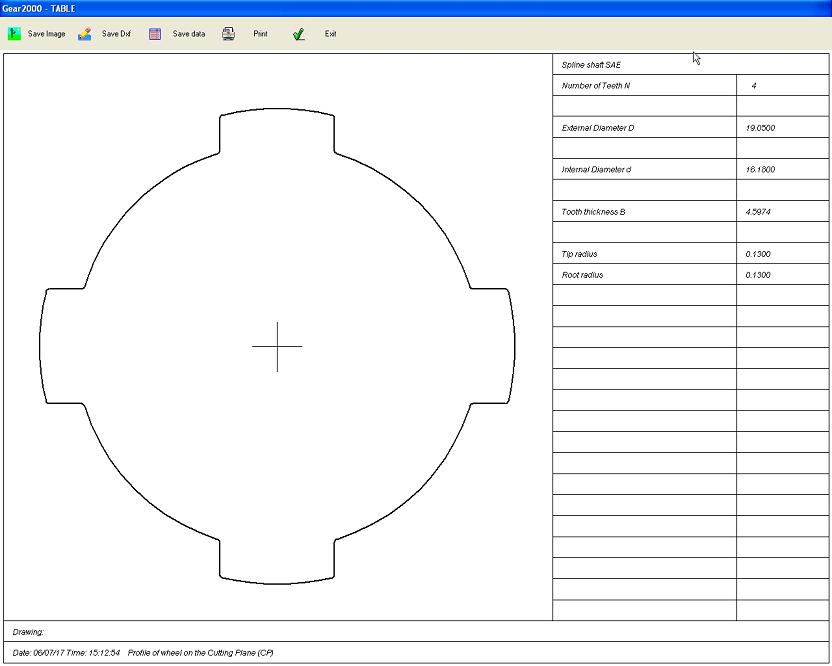

-Example of Table ouput -
GEAR2000 Help
