Shafts connections SAE J500/TC-881 ( Straight Sides Serrations )

graphic graphic

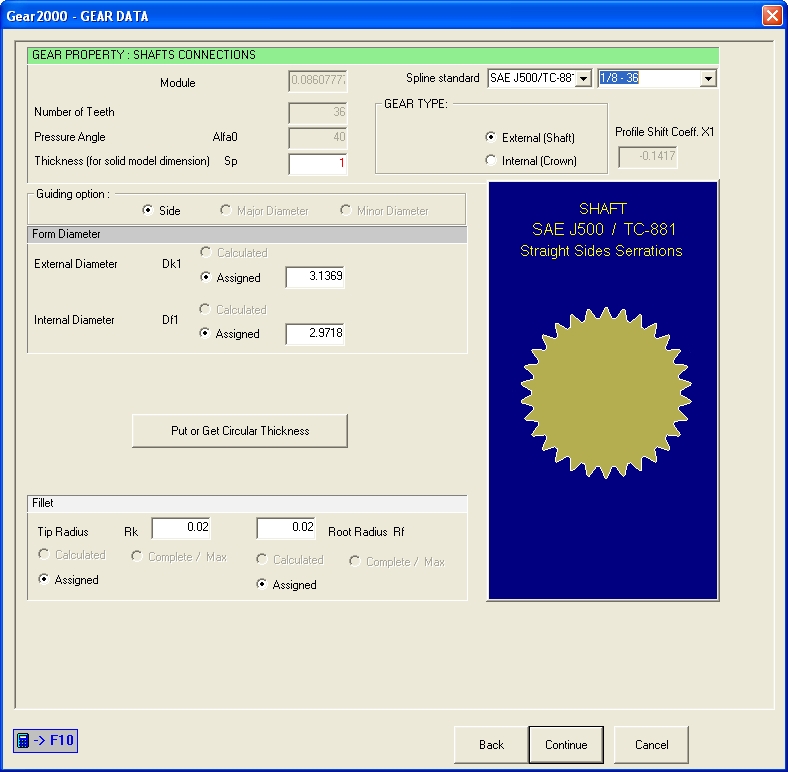

Choosing profile name from COMBO list, every standard values are updated on active DIALOG.

The standard provides profiles with straight sides of 40° pressure angle (Number of Teeth=36)
or 41.25° pressure angle  (Number of Teeth=48).

graphic

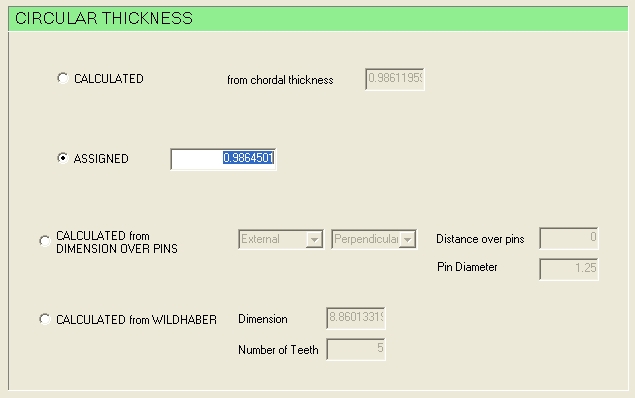

Clicking Put or Get Circular Thickness button the input DIALOG for CIRCULAR THICKNESS managing appears.

graphic
- DIALOG - Assigned value option ON -
