Shafts connections CUNA NC 008-01

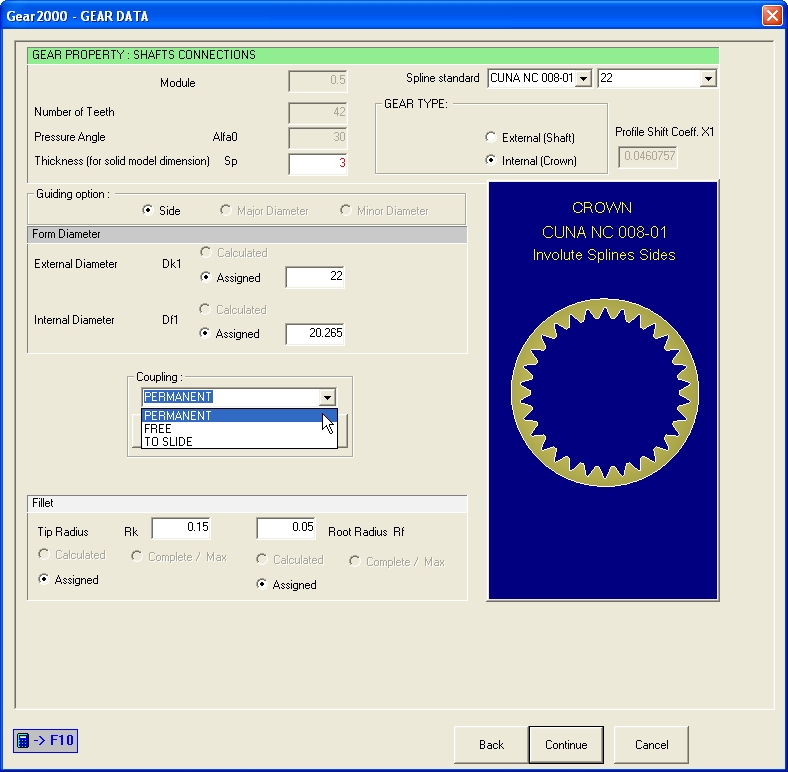

Choosing profile name from COMBO list, every standard values are updated on active DIALOG.

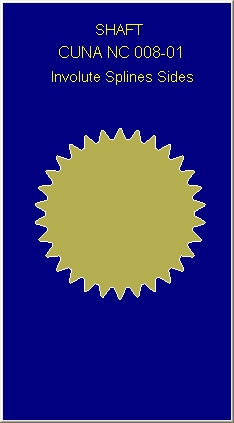

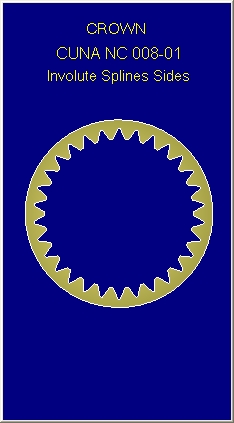

The standard provides crown and shaft with involute splines sides of 30° presure angle.
The ISO 4156 standard replace CUNA NC 008-01 only used for spare parts.
PERMANENT / FREE / TO SLIDE selection make a different coupling, changing tooth thickness
by X1(profile shift coefficient) calculated value.

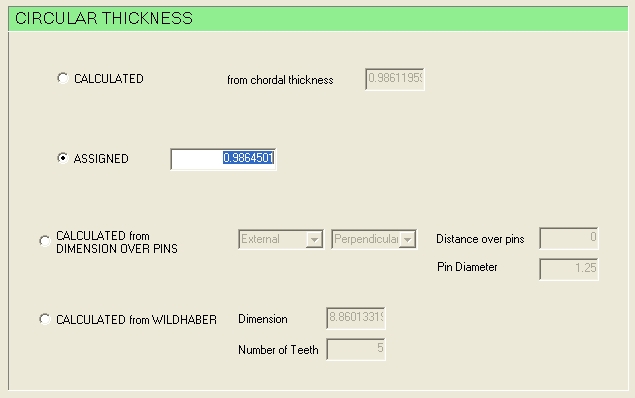

Clicking Put or Get Circular Thickness button the input DIALOG for CIRCULAR THICKNESS
managing appears.
- DIALOG - Assigned value option ON -
