Shafts connections DIN 5481 ( Straight Sides Serrations )

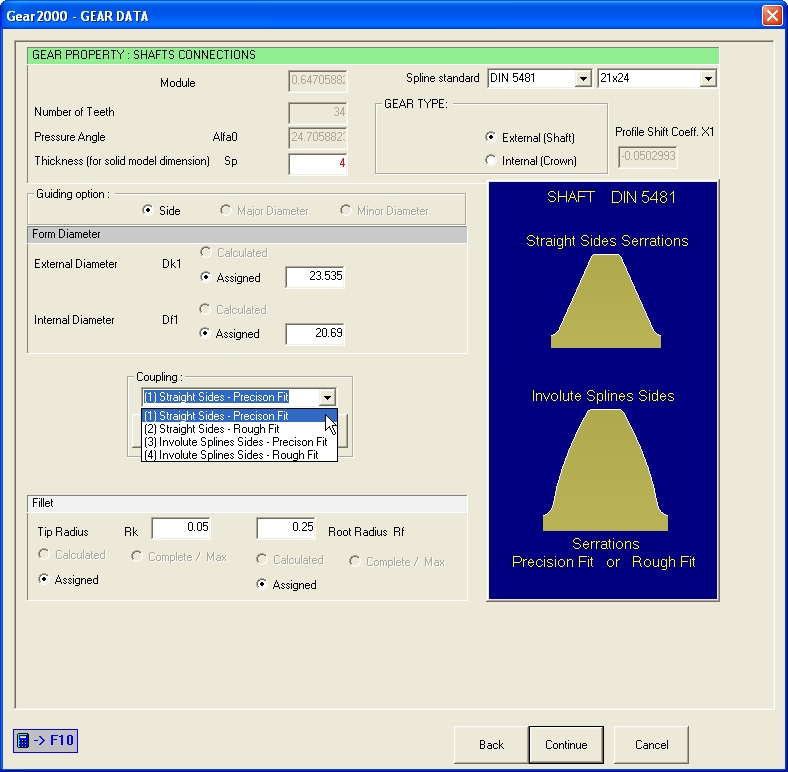

Choosing profile name from COMBO list, every standard values are updated on active DIALOG.

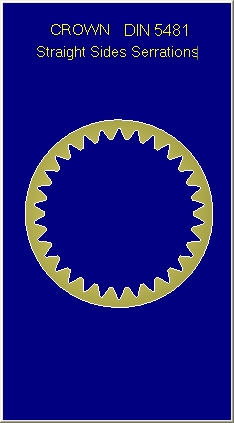

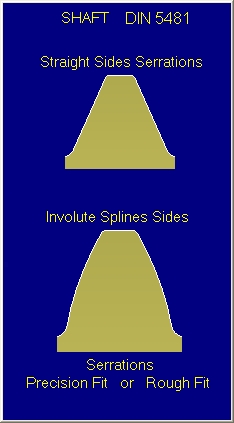

The standard provides crown with straight sides only and shaft with straight sides or involute
splines sides.
Precision Fit / Rough Fit selection make a different coupling, changing tooth thickness by
X1(profile shift coefficient) calculated value.

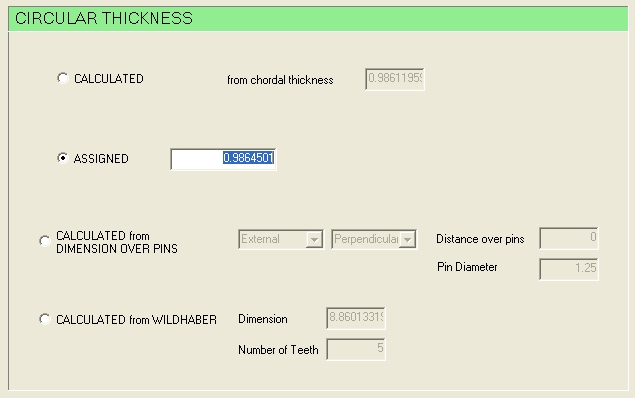

Clicking Put or Get Circular Thickness button the input DIALOG for CIRCULAR THICKNESS
managing appears.
- DIALOG - Assigned value option ON -
GEAR2000 Help
