GEAR2000 Help - Profiles - Shafts connections NF E 22-141


Shafts connections ANSI B92.1-1996 ( INVOLUTE SPLINE )

graphic

Choosing profile name from COMBO list, every standard values are updated on active DIALOG.

Parametric dimensioning of tooth allow to leave the user freedom of action regarding the choice
of the module, pressure angle, and profile shift coefficient; it is possible to derogate standard and
generate a fully customized profile.

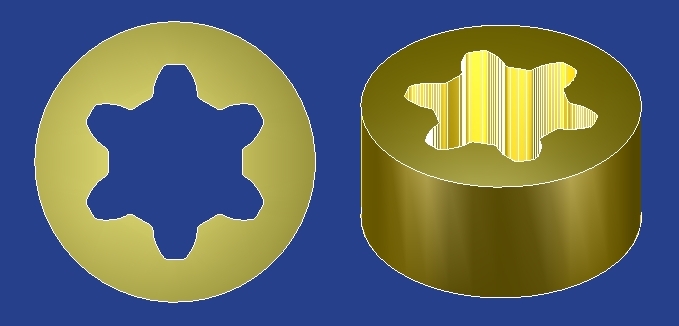

Nomenclature example : DE 132.08 x 10.16 x 11 ANSI B92-1-1996

graphic

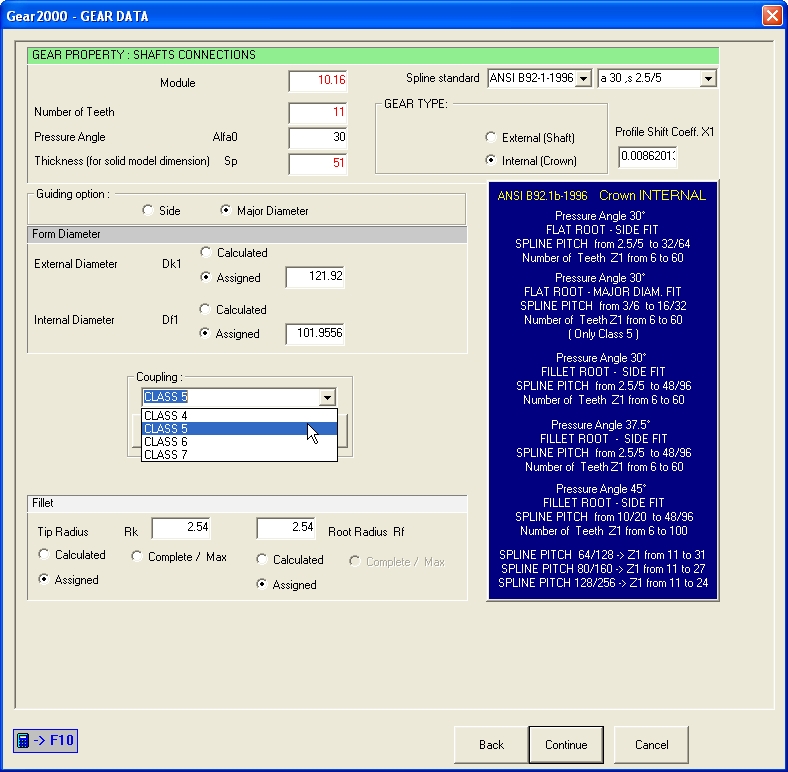

- input data DIALOG -


CLASS number selection make a different coupling, changing tooth thickness by
X1(profile shift coefficient) calculated value.
