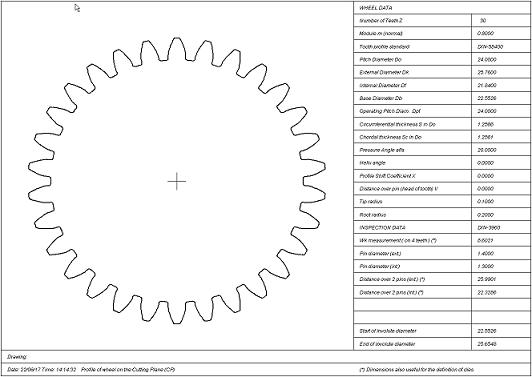

TablePlotting and printing of complete gear data, complying DIN standard.
Create a table containing data to plot and export active object in many format:
? Save BMP (Bitmap Windows) image file.
? Save DXF CAD-2D format file.
? Save numeric data in TXT file.
? Print and Plot the drawing directly.
