DATA INPUT
The INPUT data, to define the Cam Profile, can to be acquired with some different characteristic
as:
1. Basic Curves definition
2. File of points
3. S.V.A. graphic : displacement, velocity and acceleration.

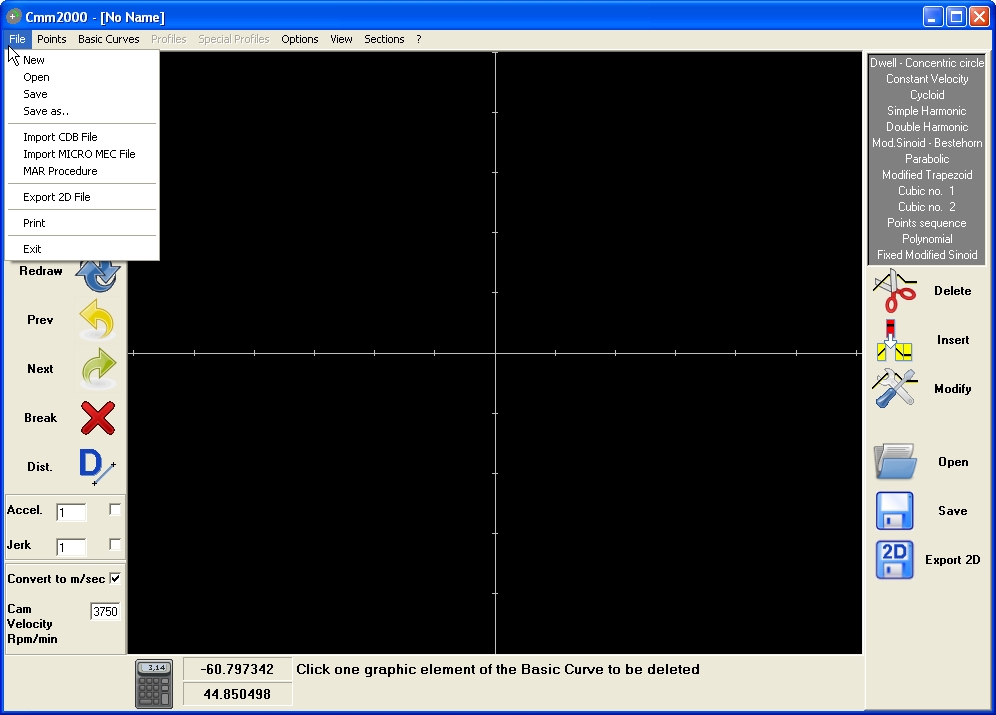

CMM2000 is also enabled to read files of previous versions, files of other software (CDB extension) or customized files (MICRO MEC).

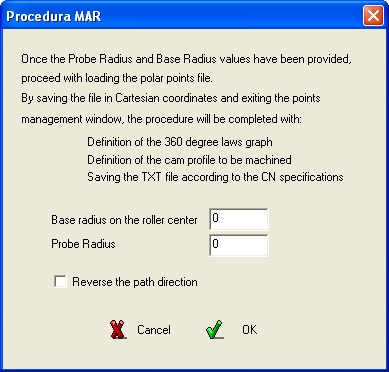

From the new version it is possible to activate the MAR procedure that allows the automatic
passage from a file of points in polar coordinates to the TXT file suitable for processing on CNC
machines.
Regardless of the input data entry method, the program interactively generates a reference S.V.A. graph that will be used to construct the cam profile based on the type of follower and frame.
S.V.A. graphic.

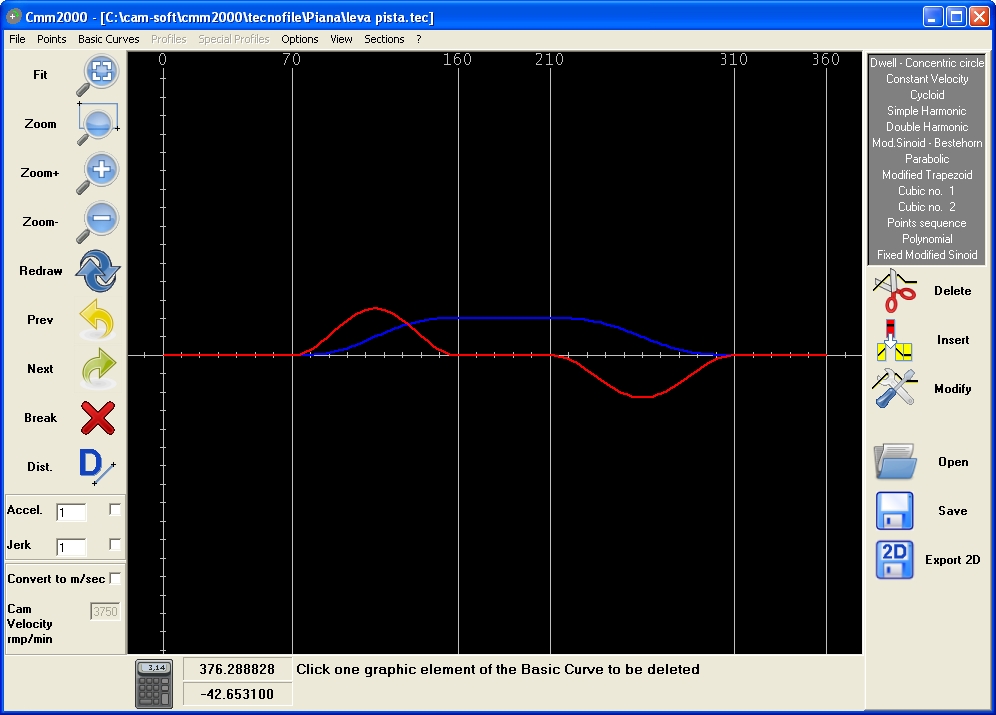

S.V.A. graphic without displaying Accelerations.

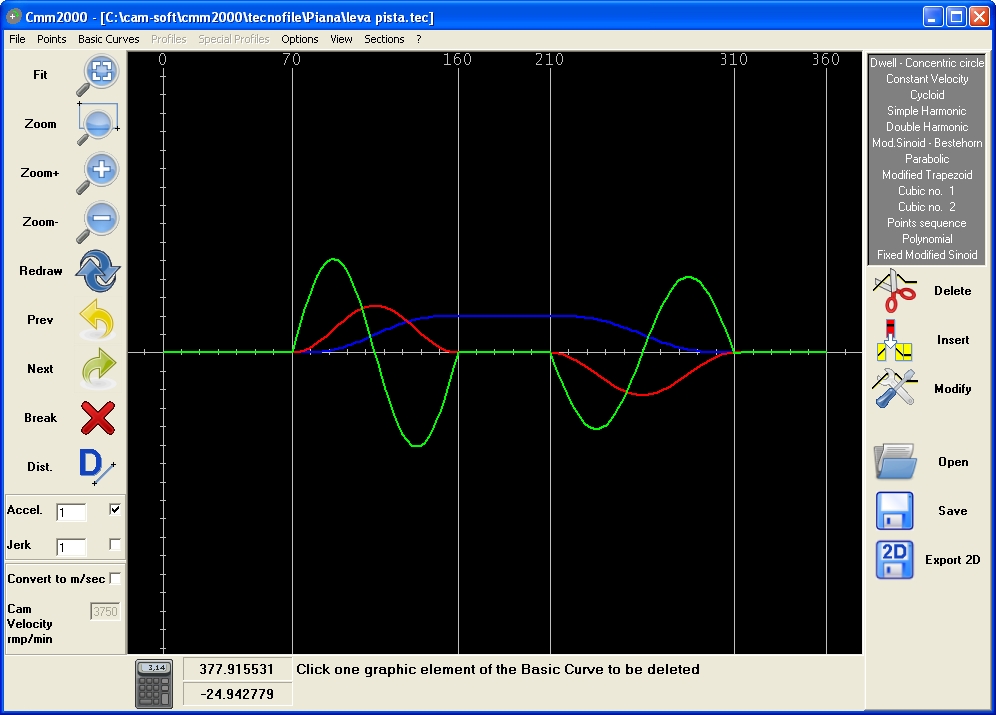

S.V.A. graphic with display of Accelerations (scale 1) and Jerk (scale 0.25).
