INPUT MENU'
BASIC CURVES
Select one of the Basic Curves proposed inside the menù to insert the stage succession of the
S.V.A. graphic defining mode and displacements of the follower.

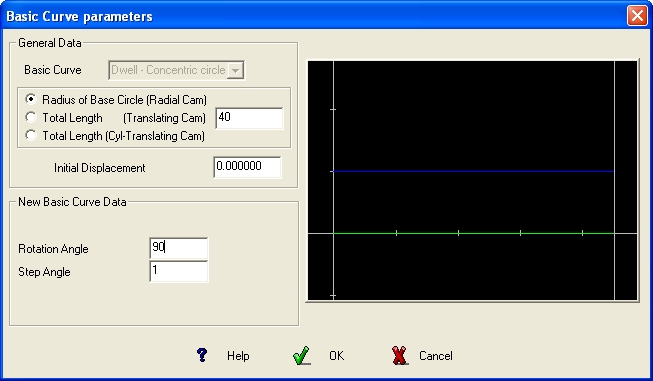

When is inserted the first Basic Curve it is possible to insert the general data of the
Cam which will appears in the upper part of the Dialog Box.
* Radius of Base Circle on roller center
to defines Radial Cam, Cylindrical Cam or Globoidal Cam (millimeters).
* Total Length (Translating Cam)
indicates the total length in millimetres of the Translating Cam.
* Total Length (Cylindrical-Translating Cam)
indicates the total length in millimetres of the Cylindrical-Translating Cam
From the new version, the possibility of defining the Step Angle has been added to all laws in
order to establish the number of points of each section of the SVA graph.
