3D SIMULATION WINDOW

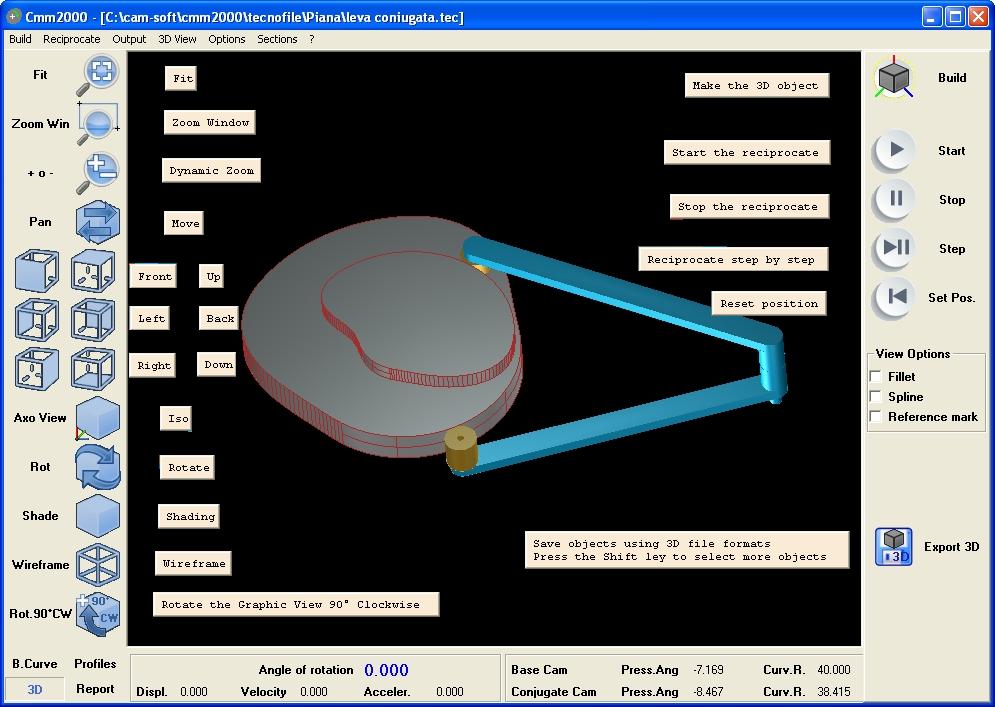

3D window commands.
It operates the 3D visualization of processed Cam and simulates the Cam movement in respect
to the defined Follower frame. Use the command to start / stop rotation , step to step rotation ,
return to start point and select, with standard command, the desired view.
WARNING! When you perform the Export 3D, the solids are saved in the angular position in
which they are found due to the simulation. With the Set Pos. button it is possible to return the solids to their original position or position
them by specifying an angle value other than zero.
|
In the latest version it is also possible to rotate the representation by multiples of 90° using the
appropriate button.
The rotation is intended only visual and has nothing to do with the rotation of the cam or with
the position of the exported solid.
|
To select the objects to export in STEP or IGES 3D format, click them
individually (the outlines light up in red) or in a group by holding down the SHIFT key.
In addition, the mouse wheel, associated with the CTRL key on the keyboard,
allows quick access to various display commands:
· for dynamic zoom ( + and - ) rotate the wheel or CTRL+SX key pressed and mouse
movement.
· to rotate the solid, keep the wheel pressed and move the mouse.
· to move the solid ( PAN ) keep the wheel pressed together with CTRL.
· to make the solid transparent, after selecting it, rotate the wheel together with the CTRL key.

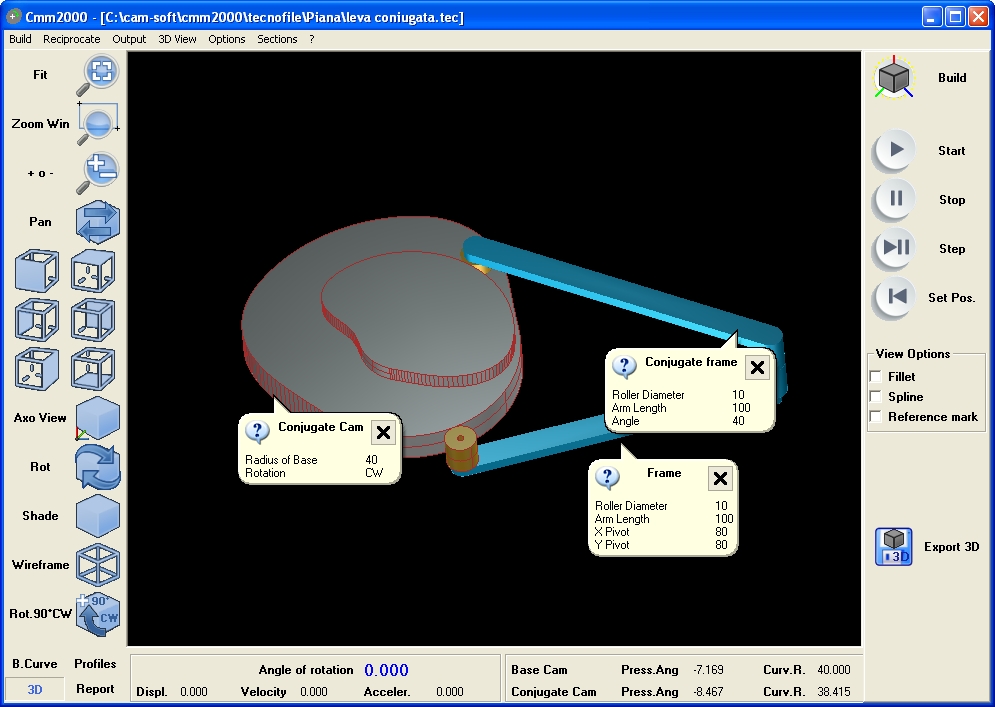

Instead, clicking the right mouse button on a 3D object displays a window baloon containing the
information of the object.

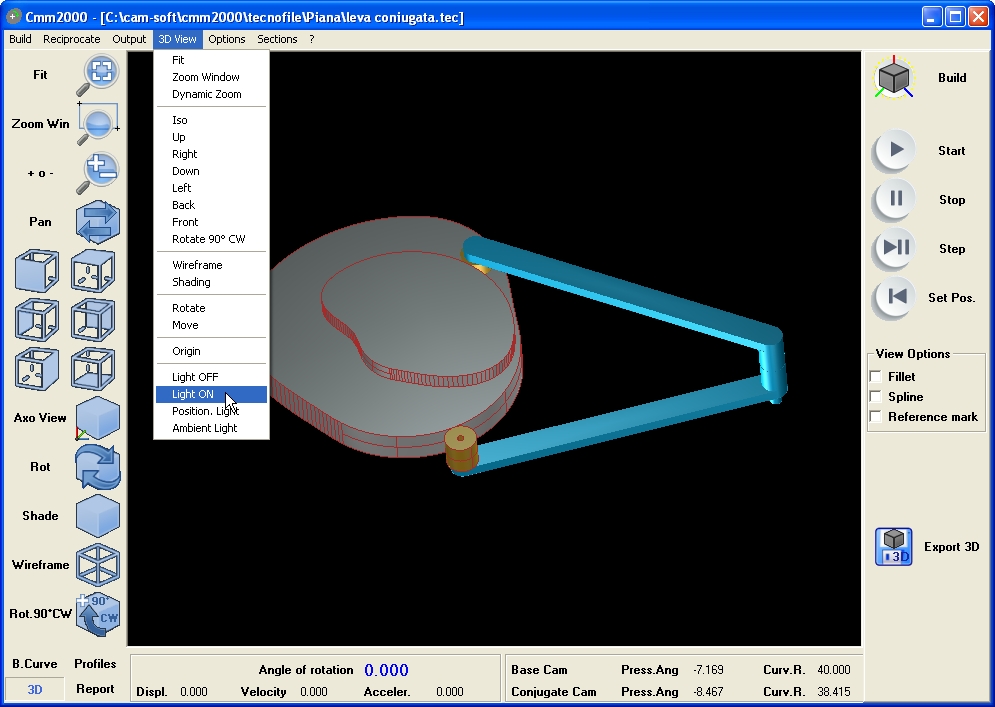

Furthermore in the 3D View menu it is possible to deactivate/activate many options to change
the display of objects.
