View Options

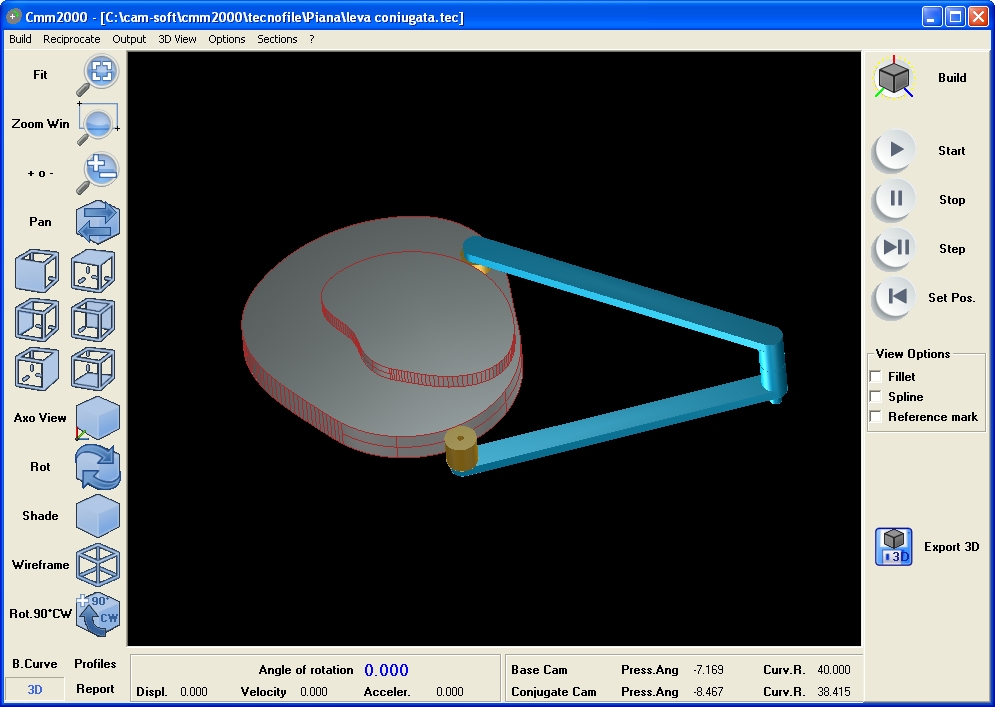

In the radial cams we have the Fillet and Spline commands as View Options.

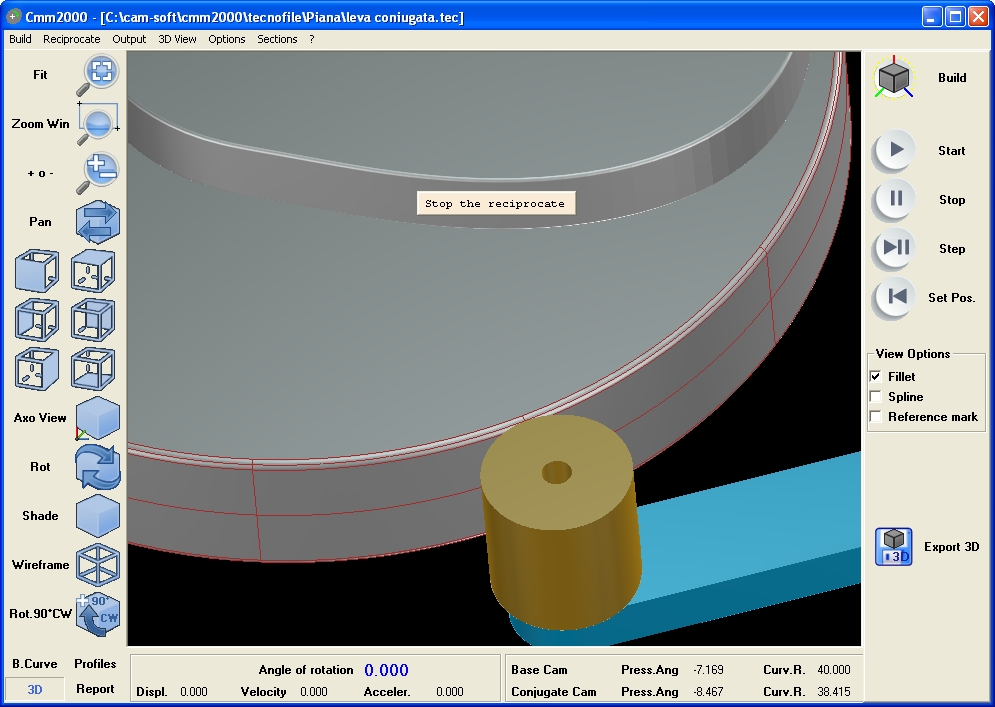

By activating the Fillet check you can obtain the fillet of the solid (parameterized based on the
dimensions of the cam) which improves the graphic appearance at the expense of processing
time. To view the modified solid, re-click the Build command.
If you want this option already active at the beginning of the program, you need to set it in the Customize->Environment->Fillet Shape.
By activating the Spline check, the solid for Export
3D is obtained starting from the spline
instead of the PolyLine depending to Max. Angular Step. To
view the modified solid, re-click the Build command.
In the new version, in the case of cams with oscillating follower and conjugated frame, the Reference mark option is also available.
If activated, when saving solids in 3D formats, a useful reference is added to highlight the position
corresponding to the zero angle on the cams

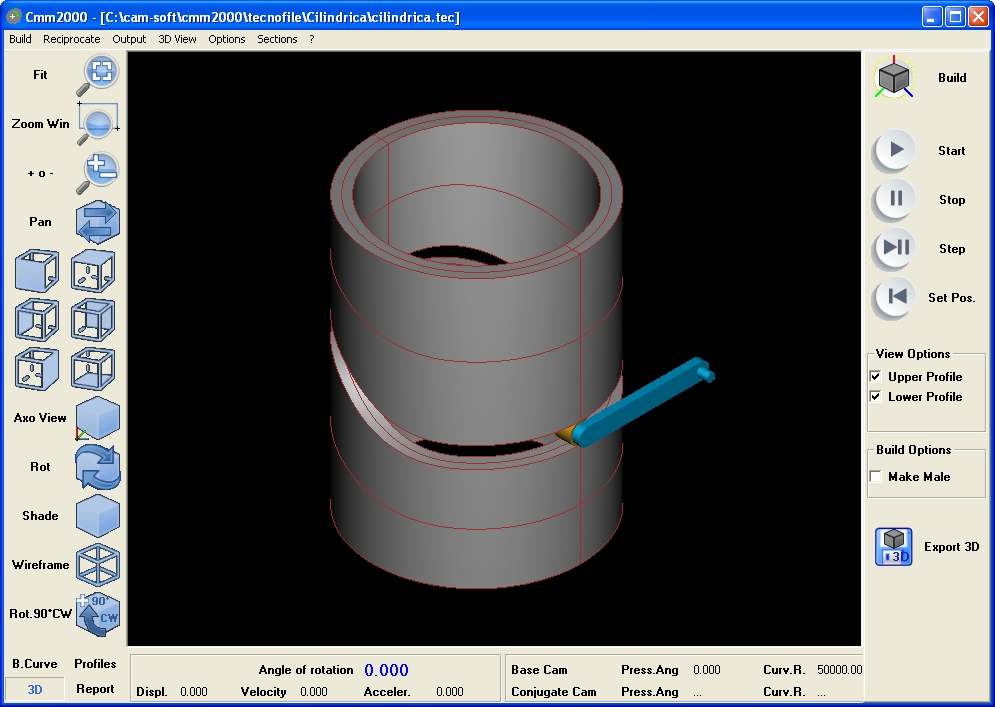

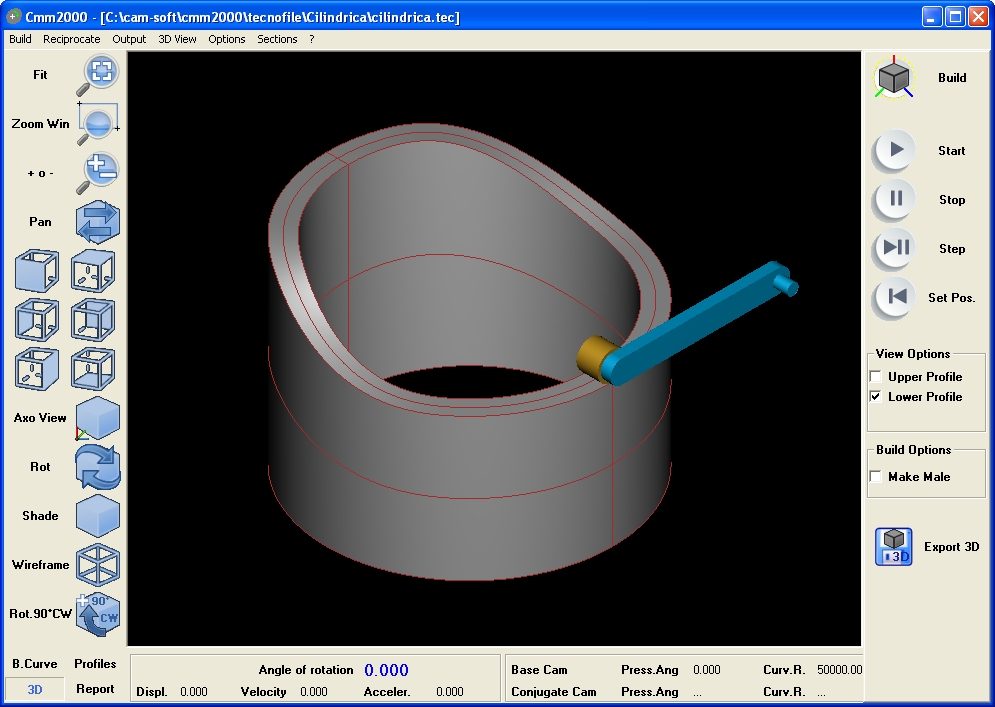

In the Cylindrical and Globoidal cams we have the View Options commands Upper Profile, Lower Profile, Internal Cylinder and Frame which are activated according to the type of cam.
