CUSTOMIZE
Enable the configuration of the parameters inside CMM2000.INI file in order to customize the
program running.

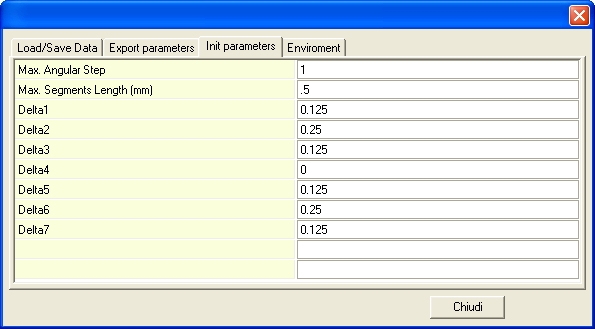

Max. Angular Step and Max. Segments Length are important parameters in definition Cam
Profile:
Max. Angular Step
Variable inside the configuration file CMM2000.INI defining the max calculation angular
step along the cam profile.
Max. Segments Length
Variable inside the configuration file CMM2000.INI defining the max calculation distance
[mm] between two adjacent point, it change the Max. Angular Step when it results
greater than the distance.

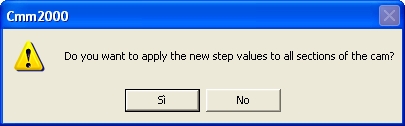

Warning:
Changing these 2 parameters has an immediate effect on the active S.V.A. graph and on the
Basic Curves only by answering YES to the question:
By changing the Delta values ??it is possible to set the default for the 7 traits of the Modified
Trapezoid.

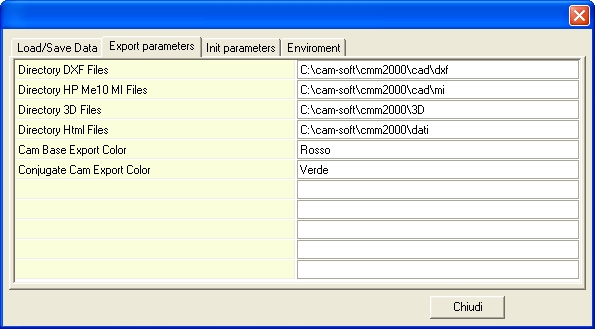

Using Export parameter options it's possible to set the directory for 3D
Export and 2D
Export or the color of the cams objects.
