MODIFY BASIC CURVES
This Menù enables the command consenting to modify or change the defined Basic Curves.Any change made to a Basic Curve has an impact on subsequent curve.

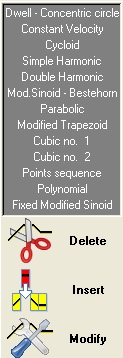

Available options:
· Delete: The command delete the Basic Curve selected with a click on the S.V.A.
· Insert : Click on the S.V.A graphic included into the application stage before which insert
the new Basic Curve. Select the type of the new Basic Curve and insert the required data.
· Modify : Click on the S.V.A graphic included into the application stage of the Basic Curve to
be modified, select a new Basic Curve or change the parameters of the current Basic Curve.
To modify the general data of the Cam click on the graphic S.V.A. of the first Basic Curve; in this
case it is possible to modify the Radius of Base Circle/Total Lenght and Initial
Displacement (see Warning - Customize).
Its possible to Insert Point on the graphics S.V.A.
It is required the X position of the new point, immediately the point is inserted on the graphic of
displacement, velocity and acceleration.
When in the required position already exist a point the command is ignored.
If after the insertion of some new point, one or more Basic Curve are modified, the program
automatically calculates the new correspondences on the modified S.V.A. graphics.
Also in this case when one recalculating correspondence coincide with an existing angular
position coming from the change of the Basic Curve the command is ignored.
To cancel the inserted points use the command Delete Point of the same Menù.
