EXPORT 2D - MI and DXF Format
Into BASIC CURVES window, export the graphic S.V.A. in the available format MI and DXF.
Into Profiles window

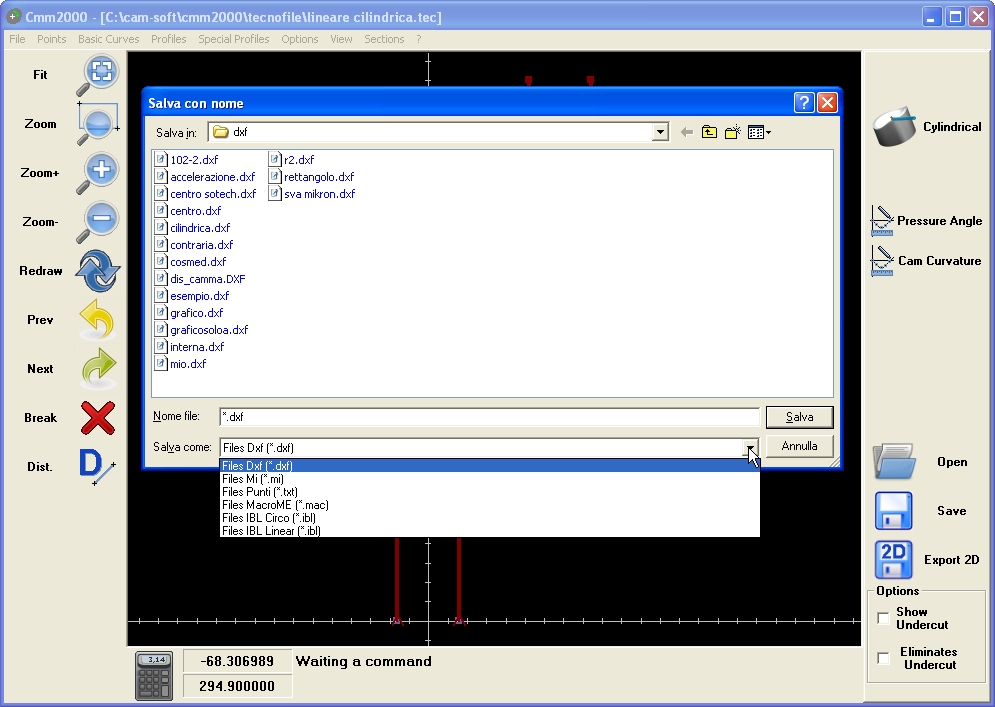

by selecting the desired option in the pop-up menu, export the profile drawing in CAD formats
DXF ( Files Dxf (*.dxf) )
MI ( Files Mi (*.mi) )
The other options in the pop-up menu are:
and
Starting with version 5, it is also possible to export IBL files for direct transfer of information to PTC Creo software.
To change/set the geometry color see Customize command.
