Export 2D - TXT and NC Format
By selecting the Files (*.txt) option, you can save the cam profile in a text file containing the
cartesian coordinates.

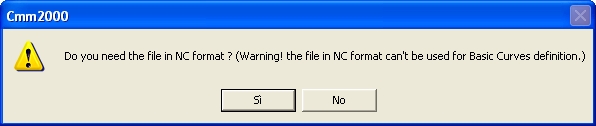

By answering Yes to the question in the DIALOG-BOX below

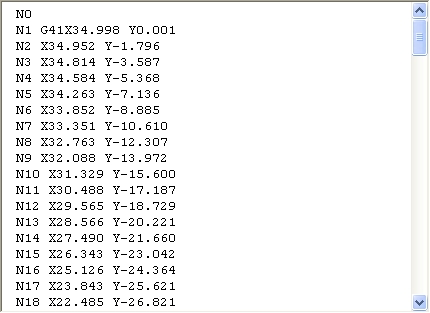

you will get a typical file for Numeric Controls (see image below)
which requires the correct use of the tool radius compensation (G41/G42) and, in addition to the
numbering, the presence of the axes addresses (X and Y) with the relative cartesian coordinates.
The operator can complete the file by adding the Head, Tail and Tool Change of his Numerical
Control to perform the processing on the machine.
Conversely, by answering No to the DIALOG-BOX question, you will obtain a file that can be re-imported from CMM2000 in the manner described in Points Sequence.
