Points Sequence

graphic

This curve suppose that the operator has a sequence of points defining the Cam profile.

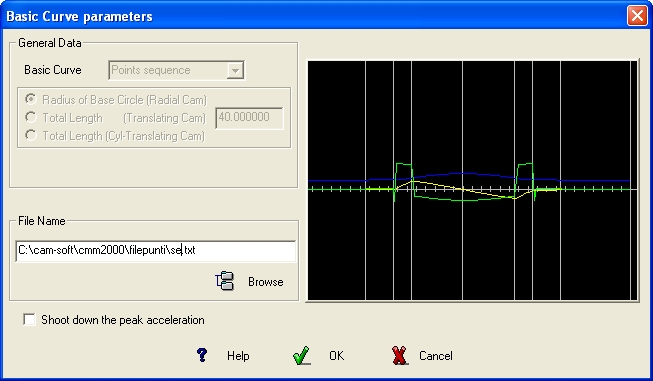

The activity requires the operator to introduce a sequence of coordinates of points, in the canonic format, defining the profile he will use.
See also the commands of Insert/Modify Points File.

The "Shoot down the peak acceleration" CHECK allows you to smooth out the Acceleration and Jerk peaks due to the imprecision of the sequence of points used.

graphic

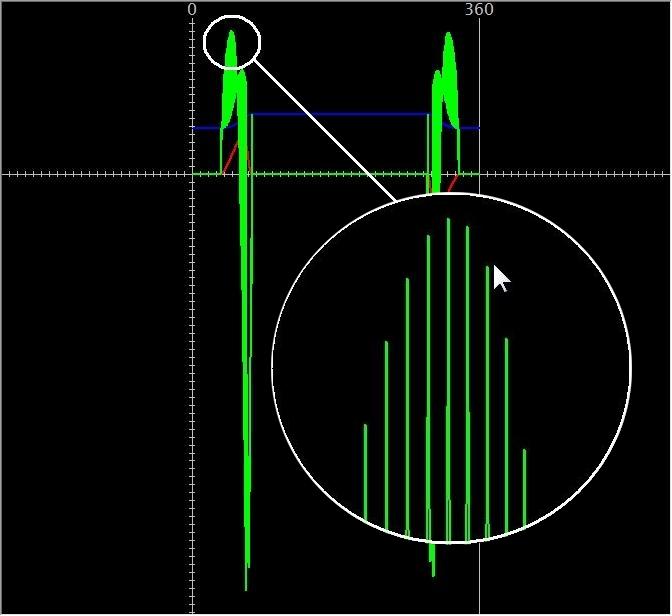

S.V.A. plot of a point file without Smooth.

graphic

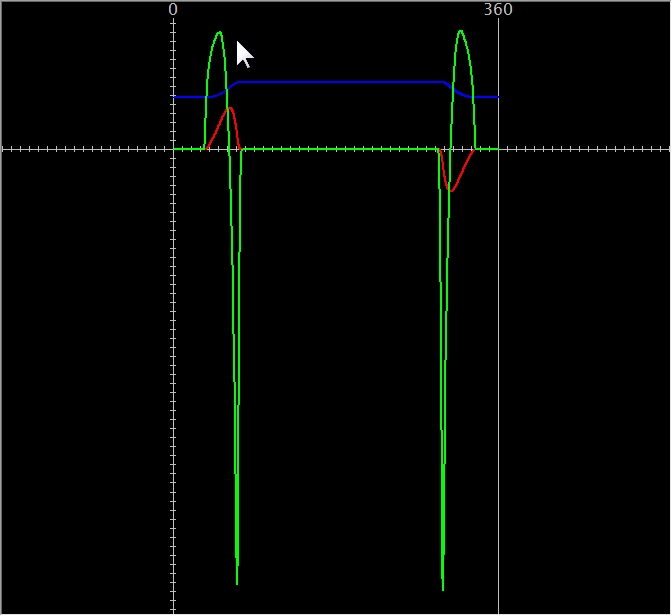

Acceleration peaks smoothed.
