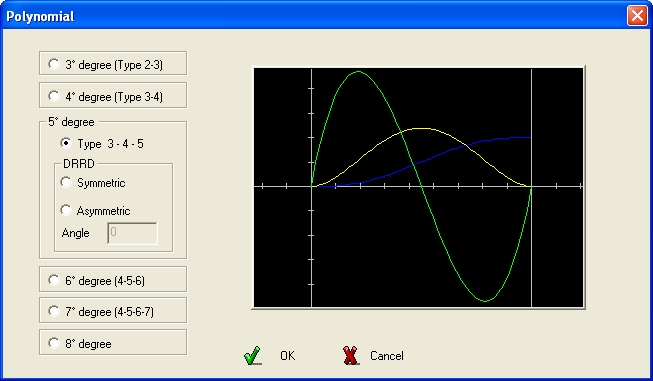

Polynomial
Allows you to select between polynomial functions of different degrees.

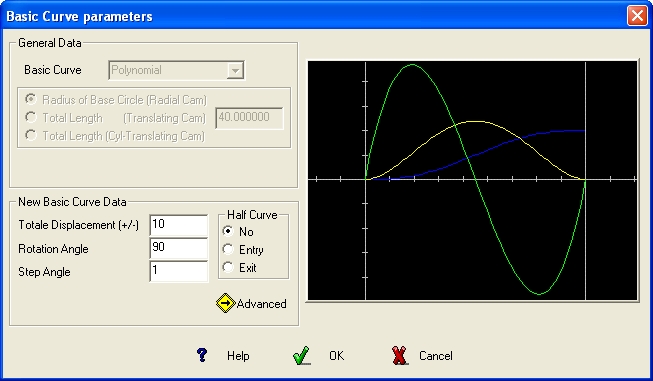

In addition to the values ??of Cam Rotation Angle and Total Displacement (+/-), the
command asks you to indicate the type of polynomial by accessing the Advanced menu.
It is possible to define “Half” Basic Curve.

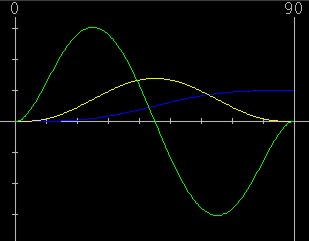

The division point correspond to the inflexion point of the graphic displacement.
Select the Option :
· No for complete Curve
· Entry for entry half-curve
· Exit for exiting half-curve
Type 2-3
Type 3-4
Type 4-5-6
Type 3-4-5

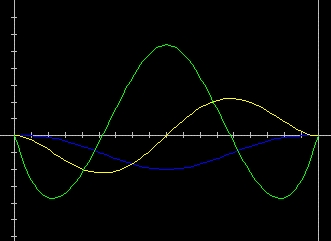

Type DRRD symmetric

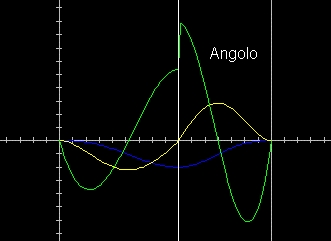

Type DRRD asymmetric
Type 4-5-6-7
8° degree
