Fixed Modified Sinoid
The Fixed Modified Sinoid curve is a combination of two quarter of cycloidal curve and a
complete sinoid curve.
This curve is a good choice in moving large masses. The modified sine curve, for lower torque
and power demand, is one of the best choice of curves.
It is possible to define “Half” Basic Curve.
The division point correspond to the inflexion point of the graphic displacement.

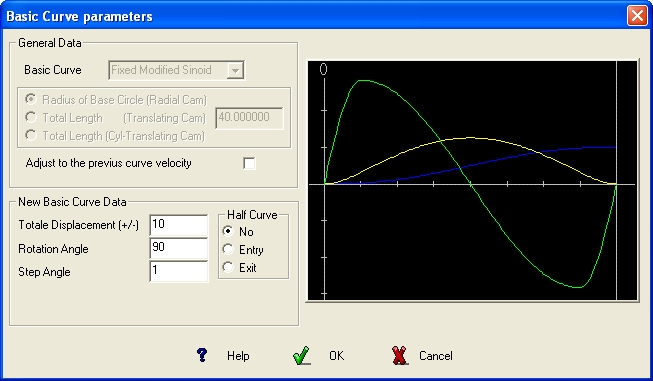

Select the Option :
· No for complete Curve
· Entry for entry half-curve
· Exit for exiting half-curve
