Indexed Turret

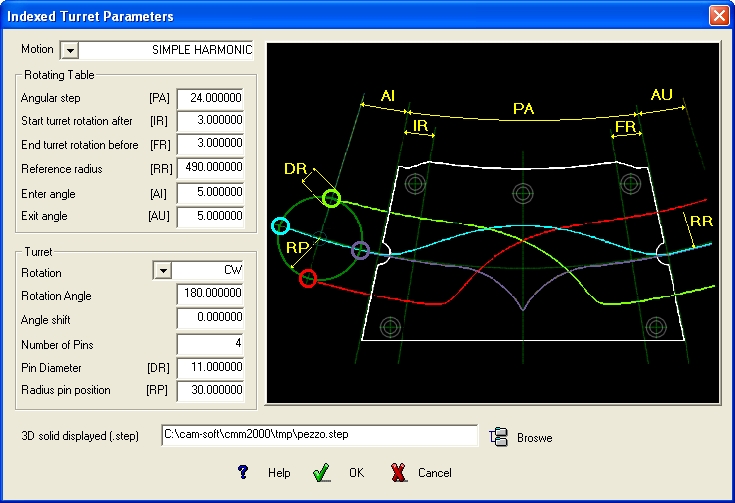

Allows to define Indexed Turret for workpiece holders with 3 or 4 pins in a parametric way.

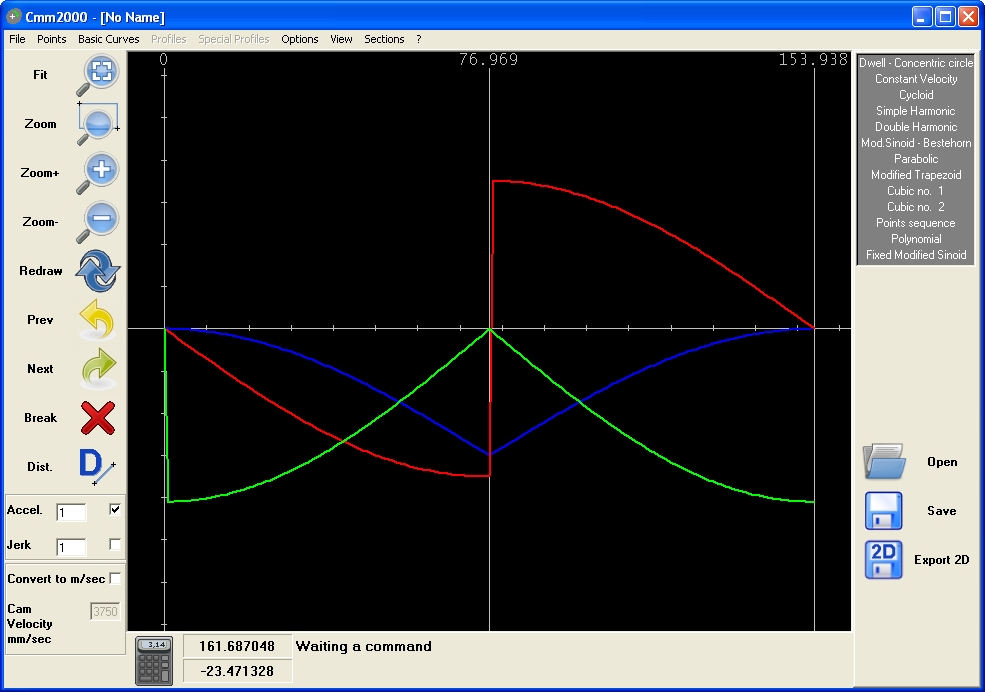

B. Curve Window: SIMPLE HARMONIC S.V.A. graph.

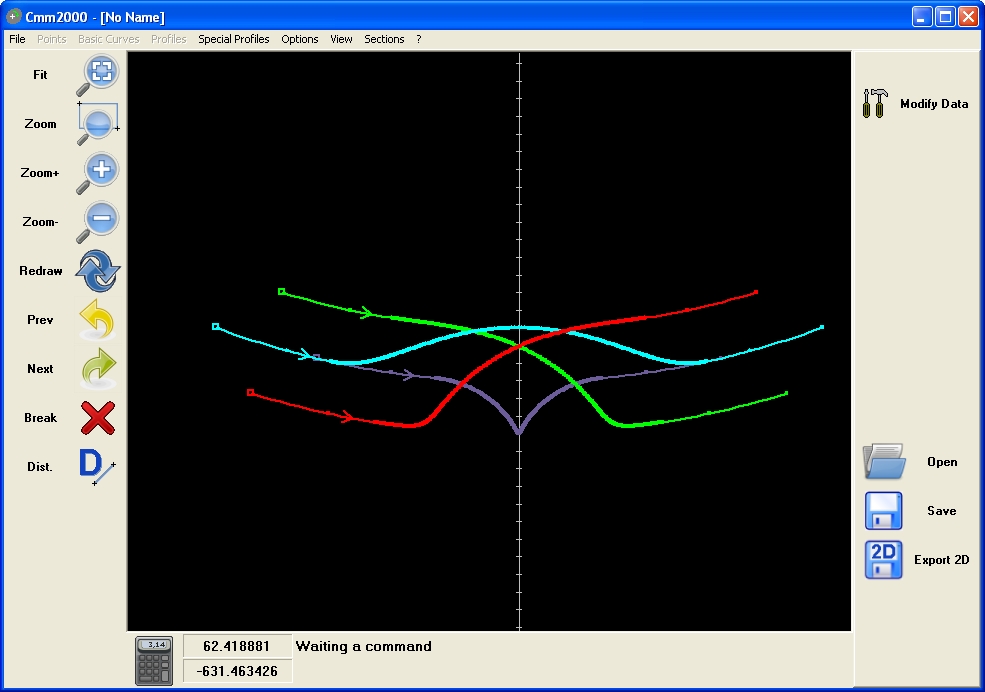

Profile Window: center of pins.

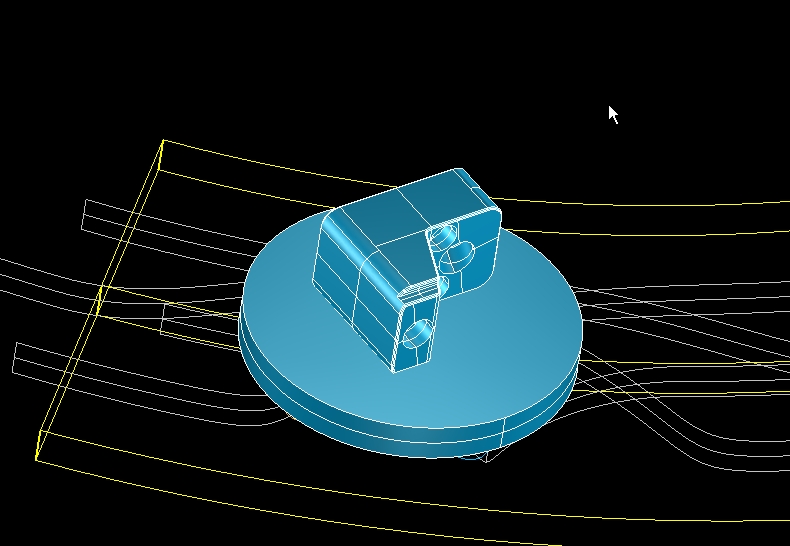

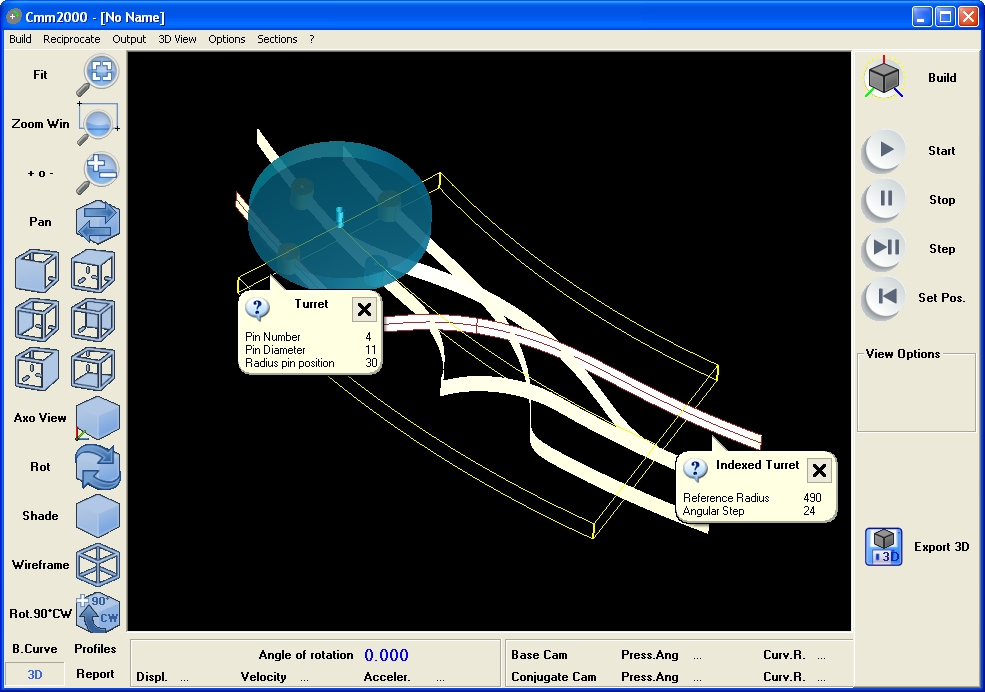

3D Window: Wireframe solids and motion simulation.
By selecting a step file in the input dialog, it is possible to add the solid model of the moved
piece to the 3D simulation.
Be careful when zeroing the model by placing the zero in Z at the base of the piece and making
the zero in X,Y coincide with the center of the piece holder.
