STAR WHEELS
The operation is similar to that of the Geneva Wheels with the addition of two gear with
incomplete teeth.

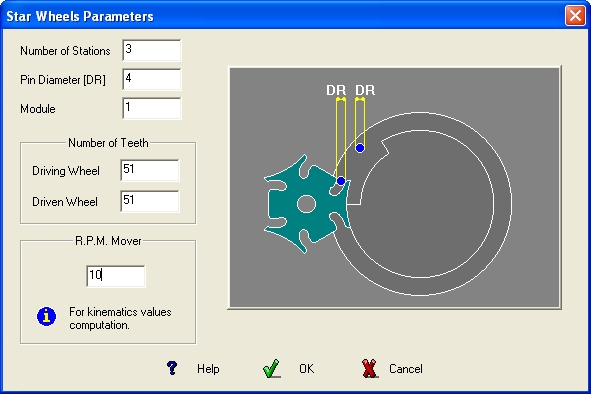

The required Data are :
· Number of Stazion
· Pin Diameter [DR]
· for the gears profiles:
· Module
· Number of Teeth for Driving Wheel
· Number of Teeth for Driven Wheel
All the profiles necessary for the construction of the mechanism are calculated, whose movement
can be simulated in the 3D window.
In the B. curve window it is possible to export the 2D drawing with all the reference positions.
The available outputs are similar to those of the cams.

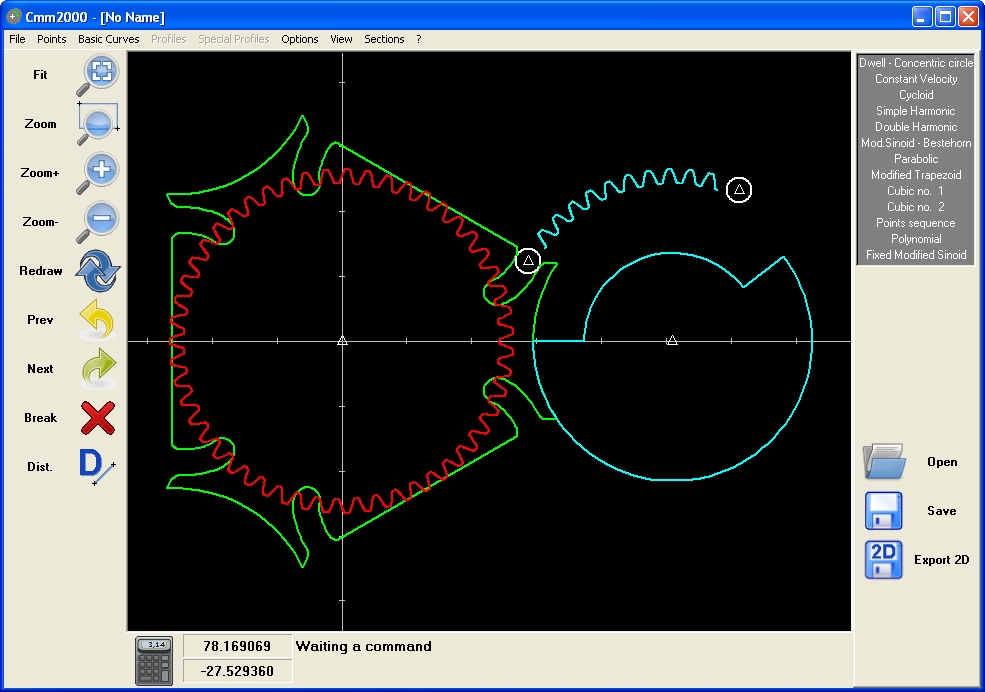

B. Curve Window.

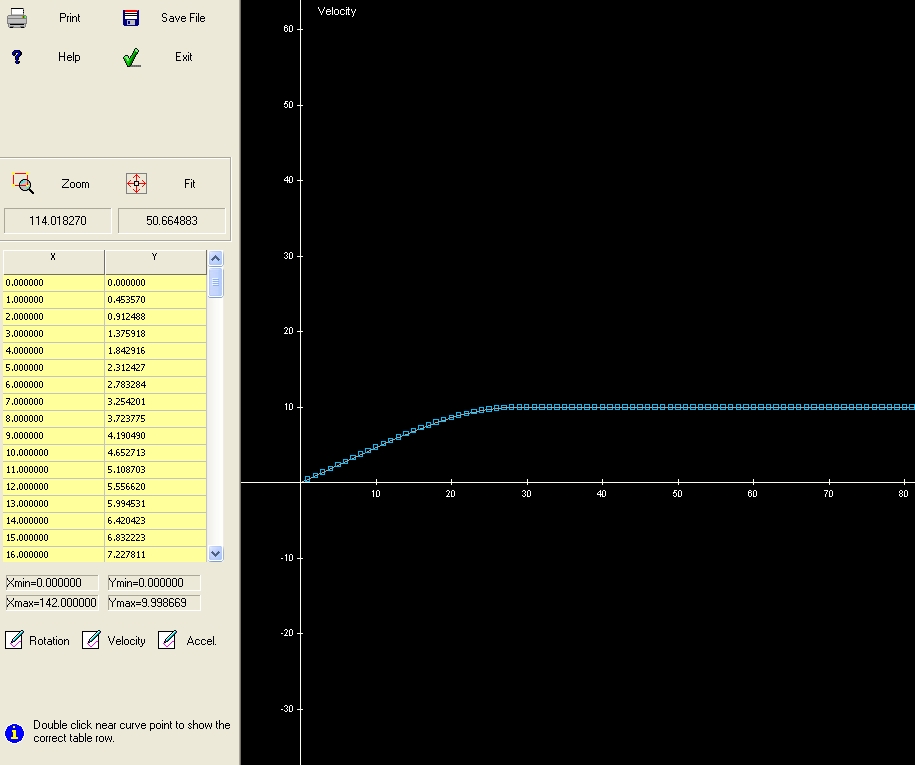

Angular Velocity Graph of the Star Wheel (Profiles Window).

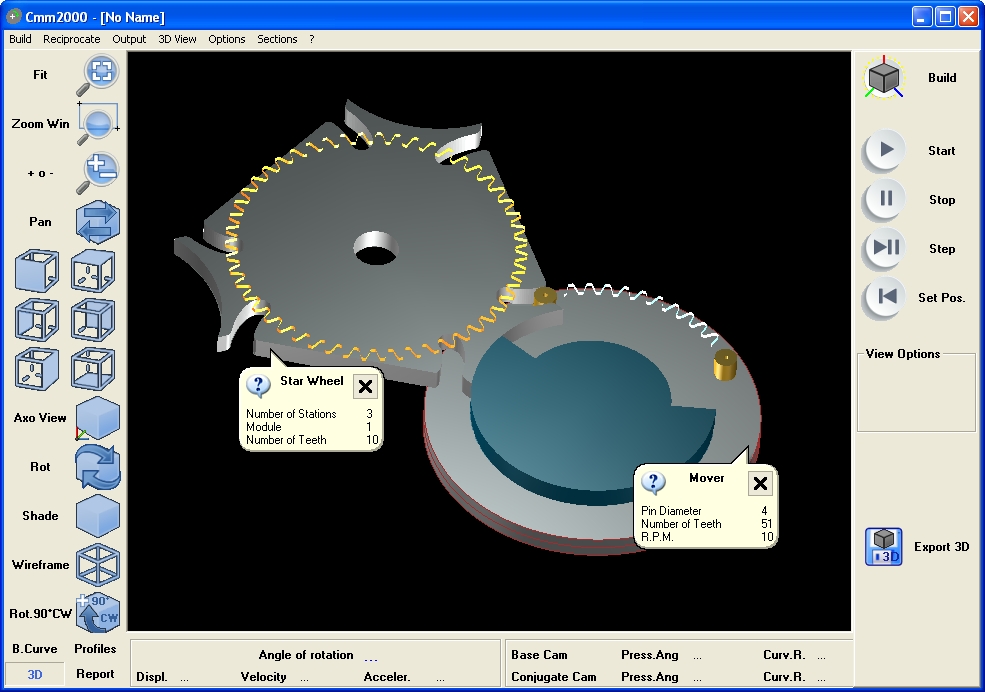

3D Window.
