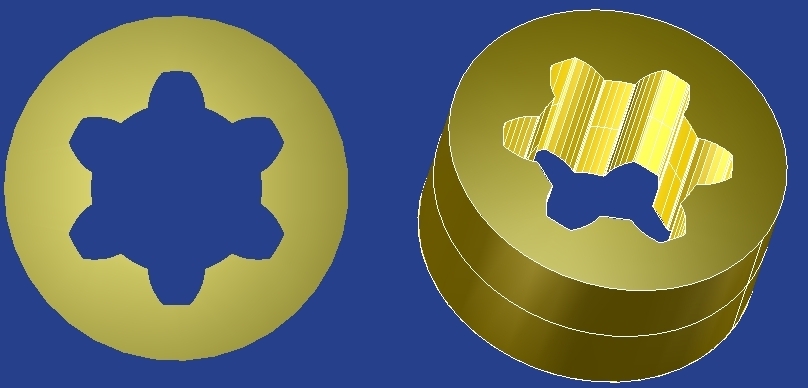

Shafts connections DIN 5480

Profiles conforming to DIN 5480-1:2006-03 and DIN 5480-2:2006-05 standards are inserted and updated.

The DIN 5480 standard replace DIN 5482 only used for spare parts.

Parametric dimensioning of tooth allow to leave the user freedom of action regarding the choice

of the module, pressure angle, and profile shift coefficient; it is possible to derogate standard and

generate a fully customized profile .

The couplings range from the outer diameter of 6 mm up to 500 mm and the inserted tables

correlate the reference diameter of the shaft with the teeth number (Z) and the module.

Examples of nomenclature :

Guidind: Side

DIN 5480-120x3x38x9H 8f (Shaft & Crown)
DIN 5480-N 120x3x38x8f (Shaft)
DIN 5480-W 120x3x38x9H (Cown)

Guiding: Major Diameter (Reference Diameter “A”)

DIN 5480-A 120x3x38xH7 h6x9Hx9e (Shaft & Crown)
DIN 5480-NA 120x3x38xh6x9e (Shaft)
DIN 5480-WA 120x3x38xH7x9H (Cown)

Guiding: Minor Diametro ( “ I ”)

DIN 5480-I 120x3x38xH7 h6x9Hx9e (Shaft & Crown)
DIN 5480-NI 120x3x38xh6x9e (Shaft)
DIN 5480-WI 120x3x38xH7x9H (Cown)

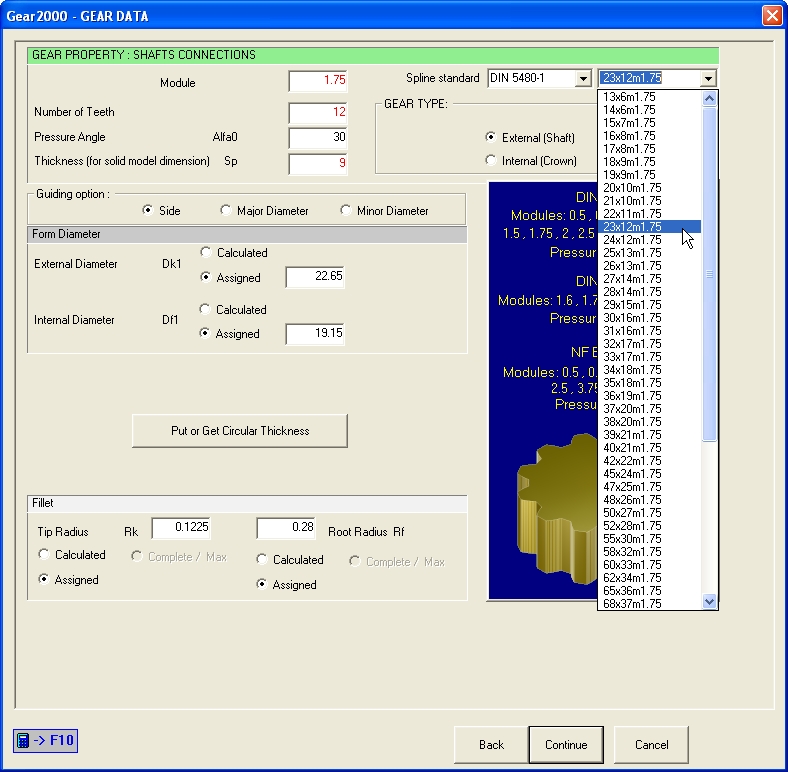

Inserting Module value into first edit control, the COMBO list shows only the related choices.
