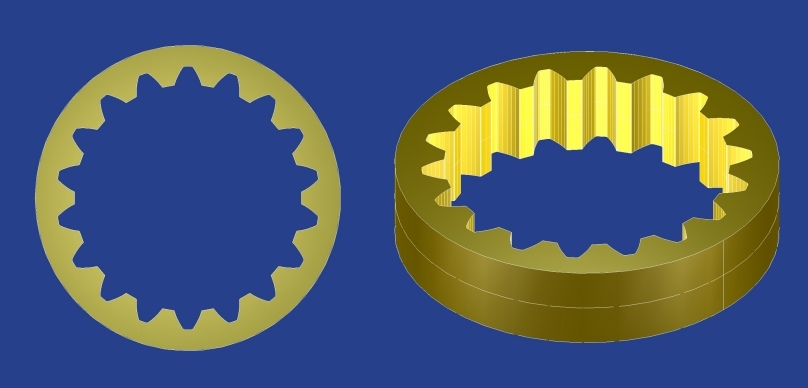

Shafts connections ISO 4156
The standard can also be used to define ANSI B92.2M (Metric) profiles.

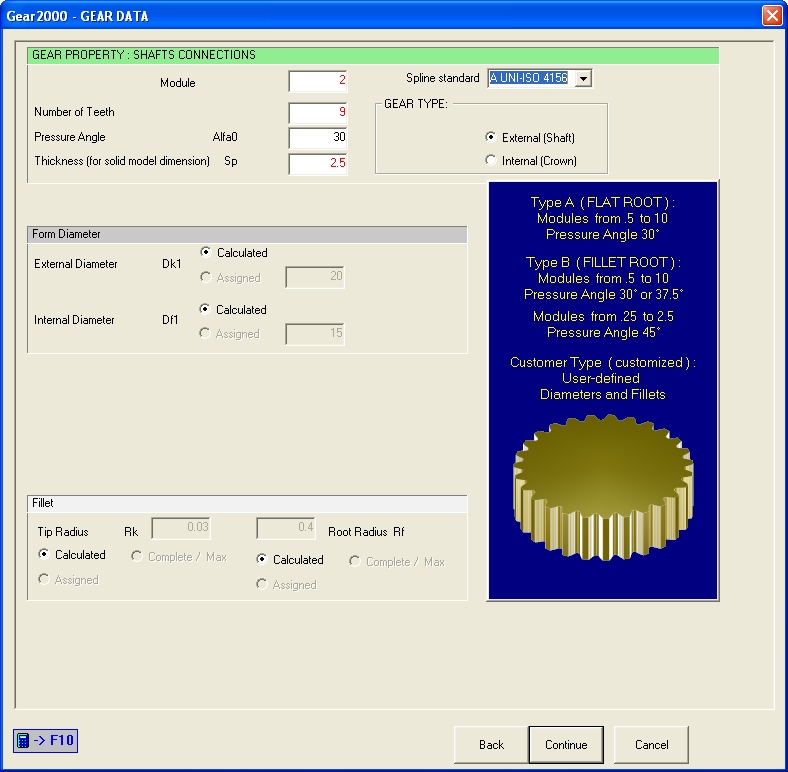

The standard includes modules between 0.25 to 10 (extremes included) and pressure angles of
30 ° and 37.5 ° or modules between 0.25 to 2.5 (extremes included) and pressure angle of 45 °.
Parametric dimensioning of tooth allow to leave the user freedom of action regarding the choice
of the module, pressure angle, and backlash; it is possible to derogate standard and generate a
fully customized profile .
By selecting US (User type options), it is possible:
- to insert full radius on both the tip and root diameter.
- to obtain the tooth circumferential thickness starting from Wildhaber or Over-pins
dimensions

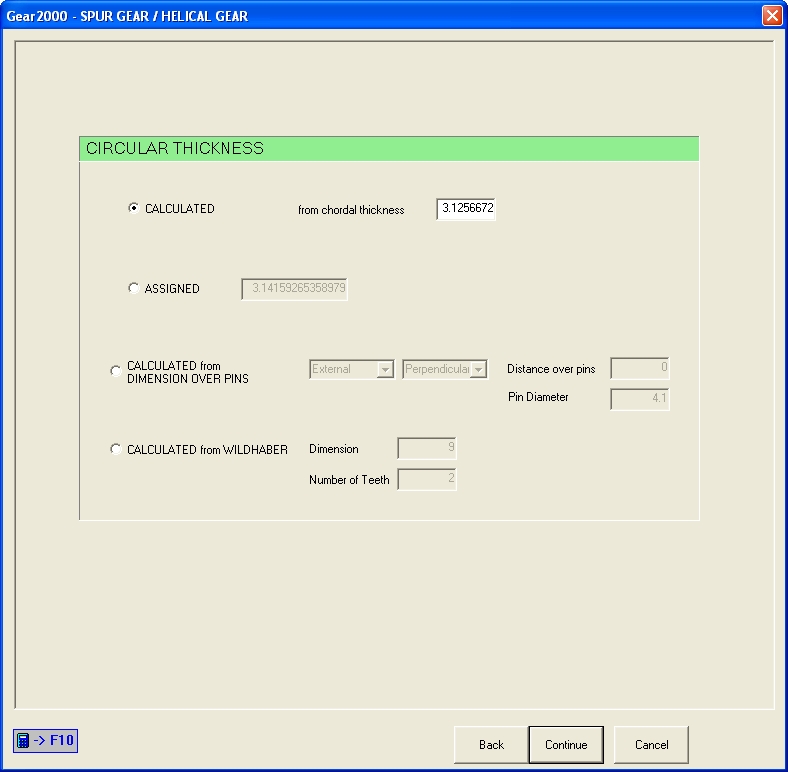

Clicking Put or Get Circular Thickness button the following DIALOG appears:

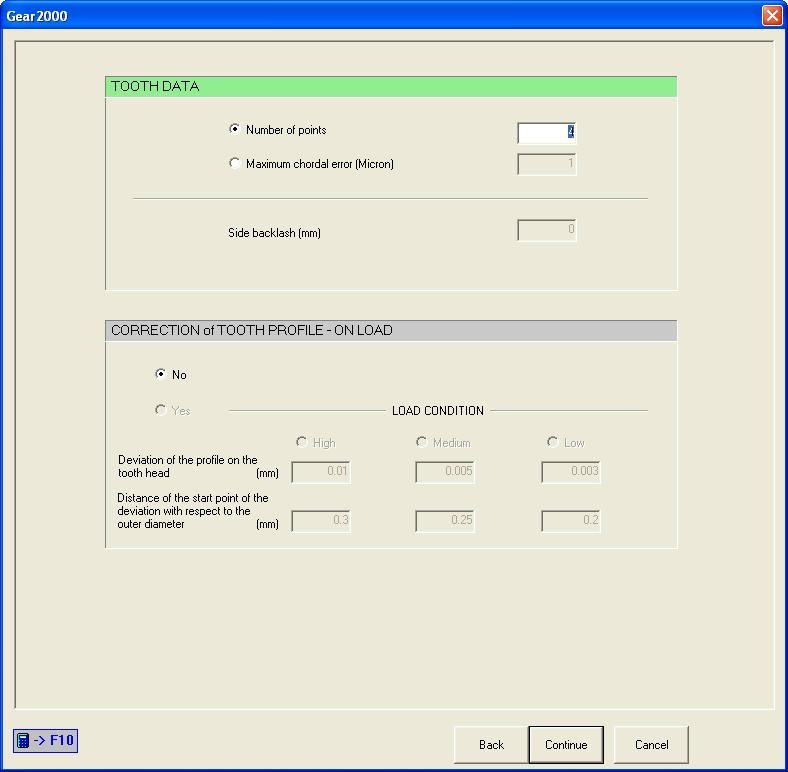

Continuing the insertion of data, it is necessary to define the Number of points for calculating the
tooth profile:
Clicking Continue the program generates the profile and Solid button appears on the right of
window.

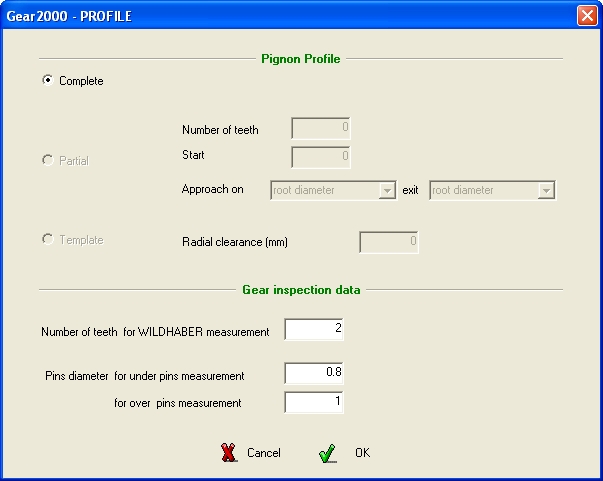

Press the Solid button and complete input data on following DIALOG:

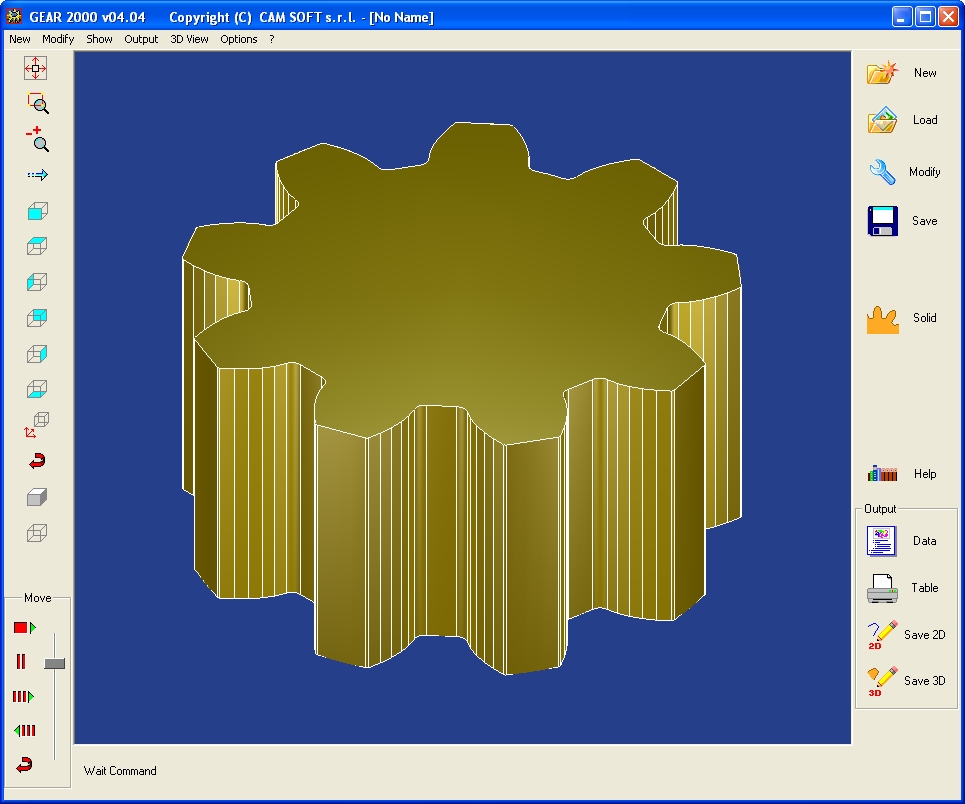

3D model is displayed and many commands for output and export are now available.
