Single and Twin Screw Extruders

graphic

Parametric procedure for 3D solids definition of Co-Rotating / Counter-Rotating Screw Extruders.

?     Selection of multi threaded (1 to 4) screws with verify of feasibility limits respect to the thread crest for fully self-cleaning screws

?     Complete mounting capability for trapezoidal screw with pitch and angle adjustment.

?     Axial cone angle feature.

?     Total crest clearance and Screw-screw clearance management.

?     Parametric Kneading Elements definition.

?     Mixer option (from 1 to 2 threads) for screw and kneading elements.

?     Assembling into one solid of the different solutions.

?     Minimum data input request.

?     Export of 3D solid (STEP and IGES format), 2D sections profiles (MI and DXF) and output reports.

?     Interactive simulation of coupling.


graphic

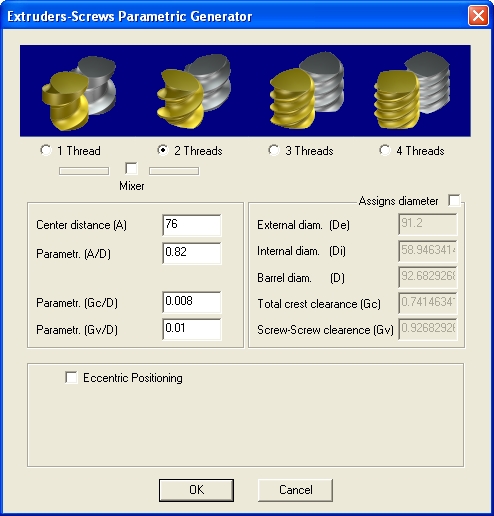

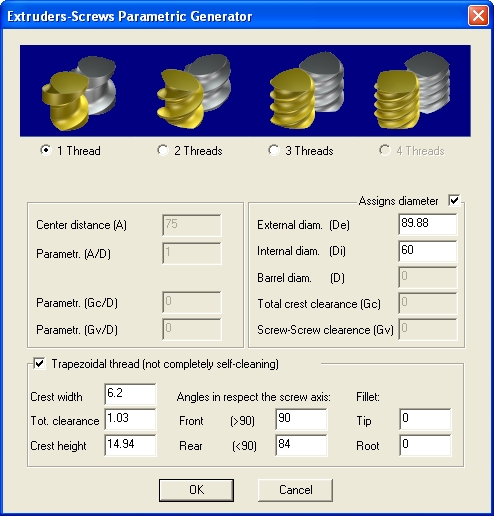

-Data input for Co-Rotating screw extruders -

graphic

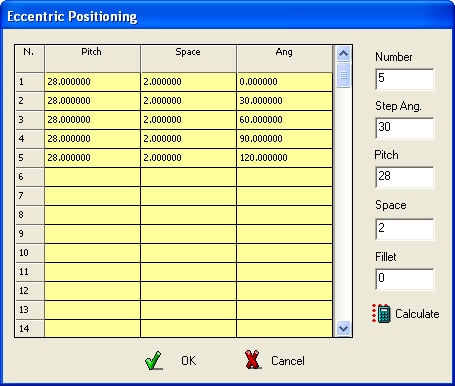

-Table  for Kneading Elements configuration -

graphic
- Data input for trapezoidal counter-rotating screw extruder -

graphic

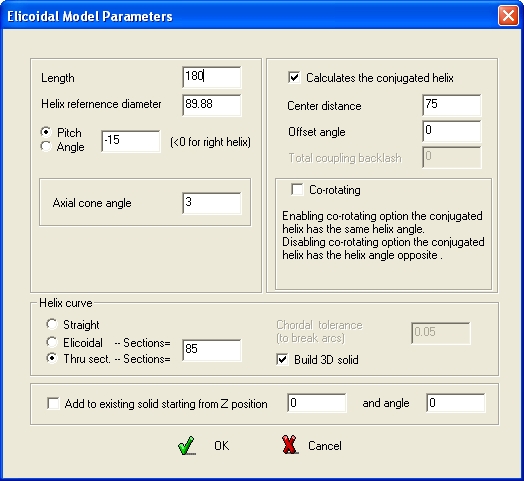

-Helix data, coupling information and 3D solid options -

graphic

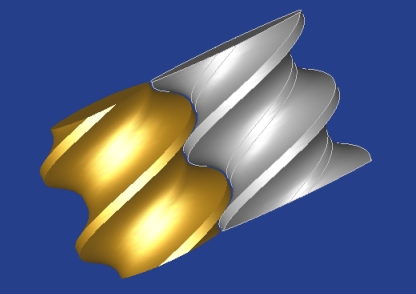

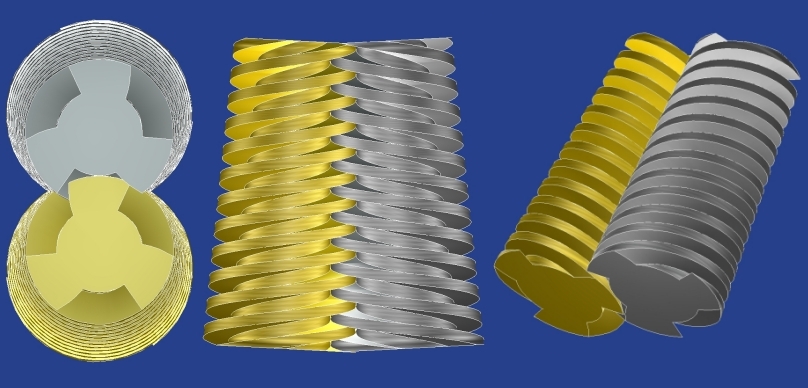

-2 threads Co-Rotating screw extruder -

graphic
-Clearance visualization -

graphic

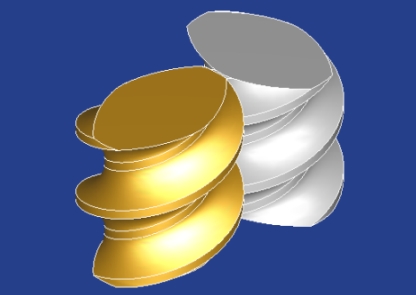

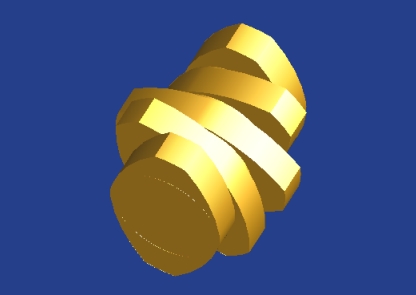

-From 1 to 2 threads mixer solution -

graphic

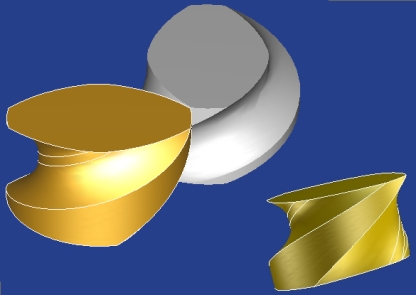

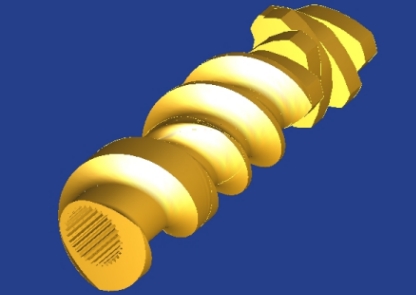

- Kneading Elements -

graphic
-Assembling: 1 thread screw  + 1 to 2 mixer + 2 threads screw -

graphic
--Assembling: 1 thread screw  + 1 to 2 mixer + 2 threads screw  + Kneading Elements -

graphic

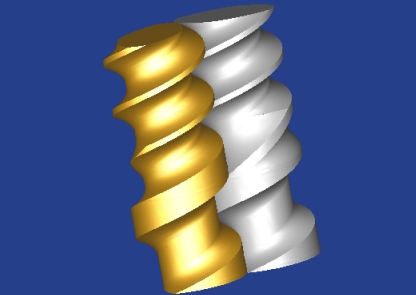

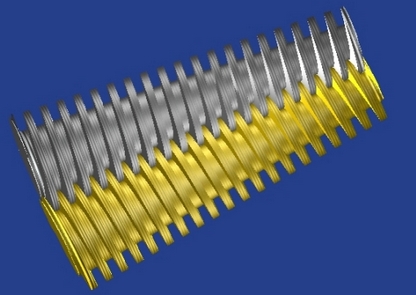

-Counter-rotating twin screw extruder -

graphic

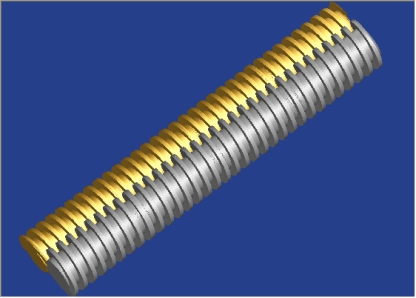

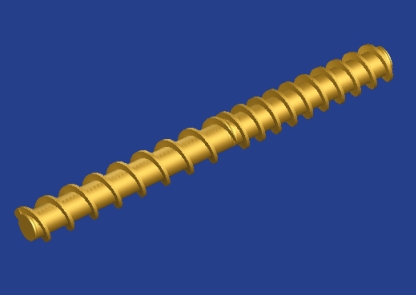

-Single screw  with variable pitch -

graphic
- Counter-rotating twin screw with Axial Cone Angle -
