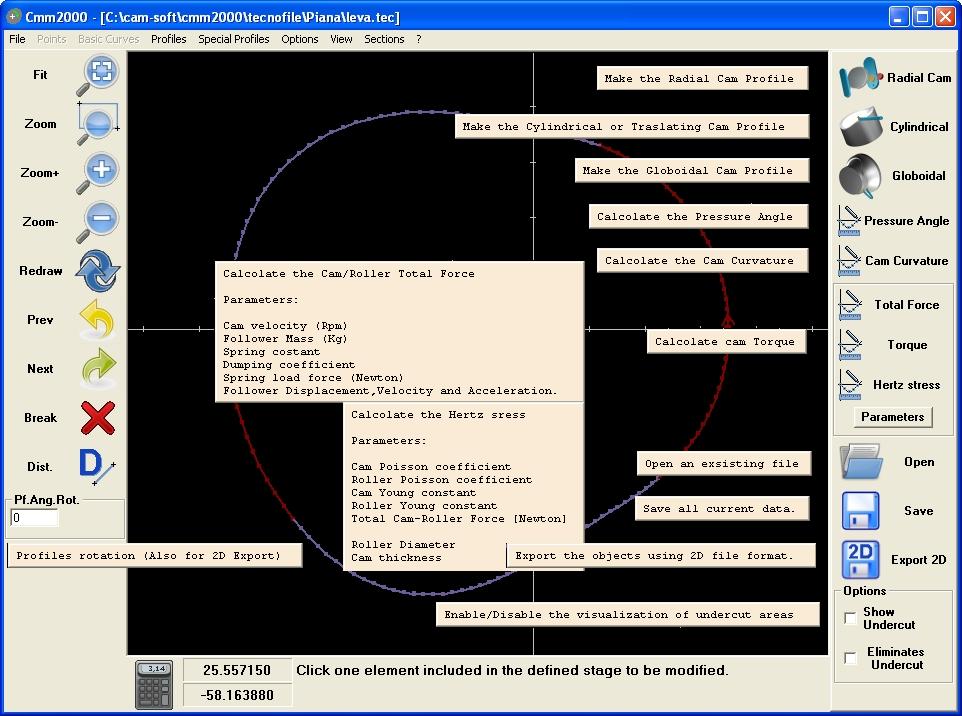

PROFILES Window
If in the first definition of Base Curves the following is chosen:
* Radius of Base Circle on roller center --> the Radial Cam, Cylindrical and Globoidal buttons appear.
* Total Length (Translating Cam) --> the Translating Cam button appear.
* Total Length (Cylindrical-Translating Cam) --> the Cylindrical button appear.

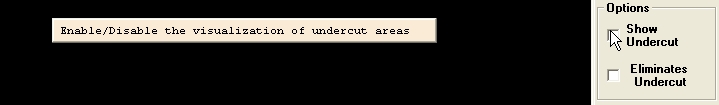

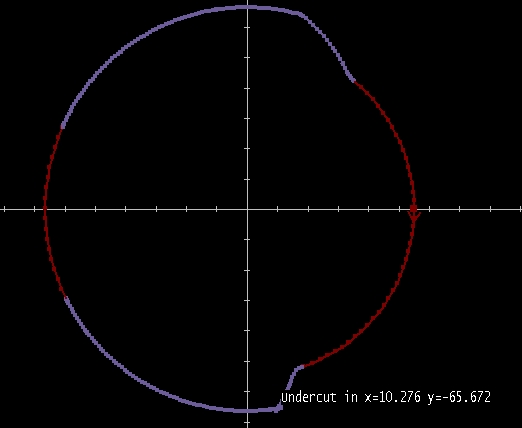

In the new version it is possible to highlight on the profile the areas that, due to the entered data,
present undercut conditions and, if necessary, eliminate them automatically.
