3D Window

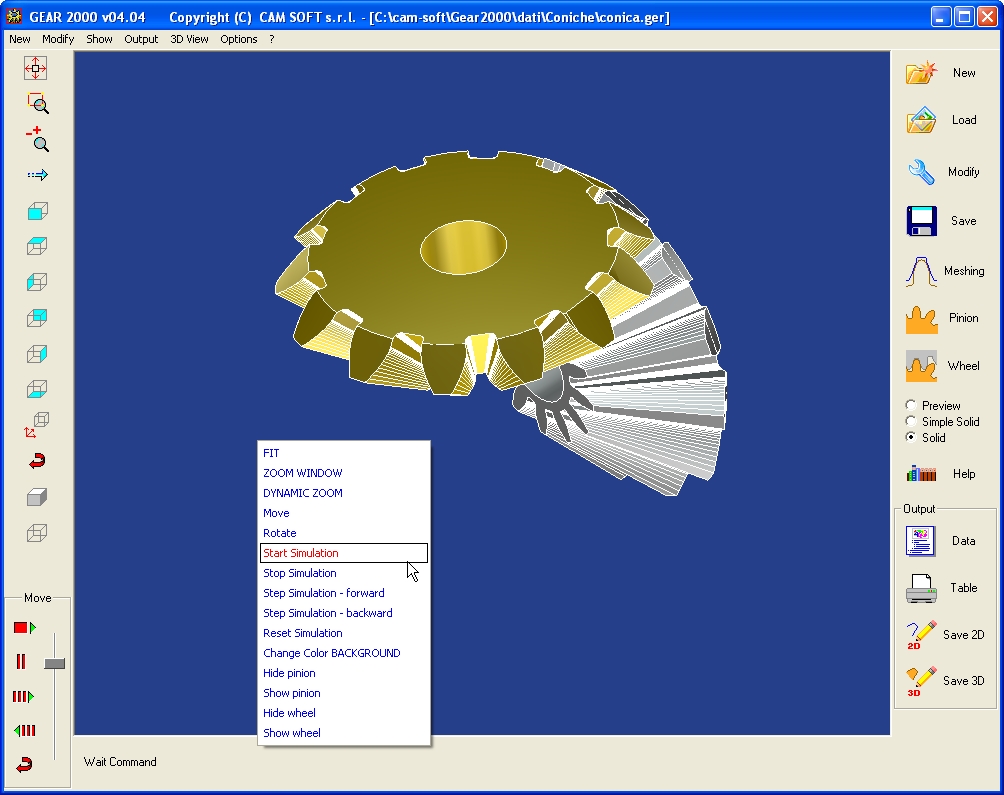

Once the solids are generated, the display commands appear in the left part of the main window, also available in the drop-down menu that appears when you CLICK with the right mouse button on the background.


graphic

This commands allows to check gear, simulating meshing, changing view options and zooming areas.
Last buttons start and stop dynamic simulation between solid objects.
Simulation speed is modifiable using specific slider resource.

Dynamic zoom, dynamic rotation and dynamic solid transparency are possible using mouse wheel along with Shift and Ctrl keys.


graphic

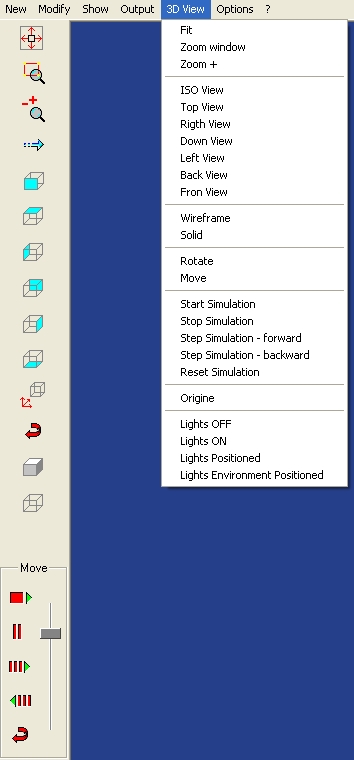

- Available commands in the drop-down menu -


graphic

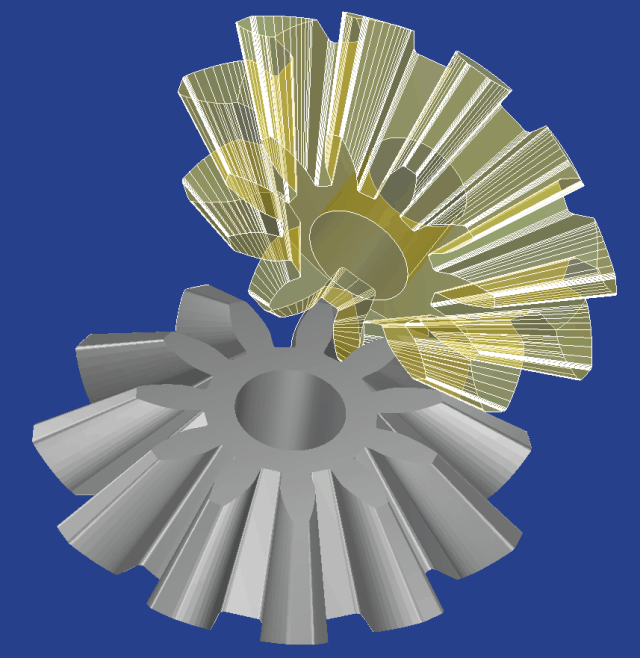

- solid object with modified transparency -



Origin:
graphic

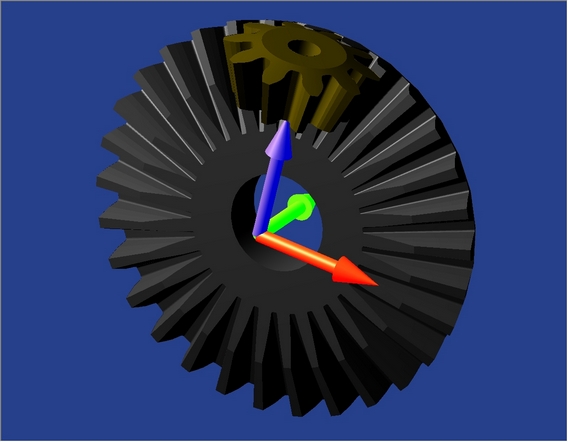

- Red=X positive , Green=Y positive e Blue=Z positive -


Lights:

graphic
-ON-


graphic
-OFF-


graphic
-Positioned-


graphic
-Environment Positioned-




From 4.04release:
·     the exports of 3D solid models is done respecting current position of simulation.
·     the positioning of 3D solids is done respecting Center distance var.  value defined in Meshing dialog.
·     is possible to customize the backlash visualization, using specific variable explained on Customizing section.
